INSTRUCTION

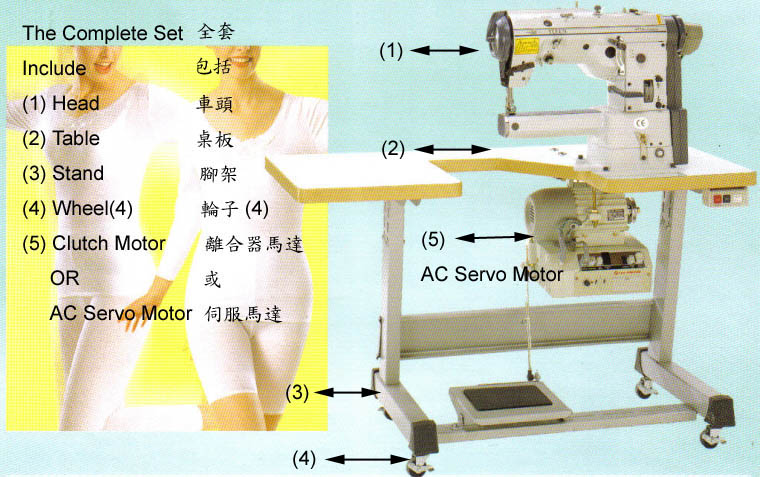

Cylinder Bed, Zig-Zag Industrial Sewing Machine

High Speed, Single Needle, Drop Feed, Lock Stitch

475A-605-NCB-LG

475A-625-NCB-LG

475A-635-NCB-LG

475A-643-NCB-LG

SPECIFICATIONS :

MODEL	STITCH PATTERN	MAX. BIGHT	MAX. STITCH LENGTH	MAX. SPEED (s.p.m.)	APPLICATIONS
475A-605-NCB-LG	1-step 2-point	8.0 mm	1.3 mm	3,600	For concave, convex, bag, bowl-like objects, leather bag.... General zig-zag work and lace attaching.
475A-625-NCB-LG	1-step 2-point	5.0 mm	2.0 mm	3,600	Attaching lace, making underwear, shoulder straps of bras, hats, shoes, leather bags....etc.
475A-635-NCB-LG	3-step 4-point	8.0 mm	1.3 mm	3,600	Attaching elastic straps to underwear, bras, bodysuits. Also decorative sewing for shoes, hats...etc.
475A-643-NCB-LG	(on click) optional cams	8.0 mm	1.3 mm	3,200	Decorative sewing for bags, shoes, hats & bowl-like, spheroidal objects. It can be used for sewing modern, trendy form-fitting underwear and shirts for women. In matching with stitch needs, various pattern cams are available for replacement, such as scallop, zig-zag, blind stitch....etc.

Remarks: Speed depends on the materials and the type of operation.

	APPLICATIONS :
1.	Attaching concave, convex, bowl-like, spheroidal, tubular zig-zag works.
2.	Attaching elastic trim or lace to corsets, bras, shoulder strap, leg or waist sections of ladies' body suits, swim suits.
3.	For sewing ladies' body suits, negligee, men's underwear, sports wear, etc.
4.	For seamless sewing of underwear, pantyhose, body suits, leisure suits.
5.	For sewing fasten articles and special items, such as shoe cover, handbag, leather goods, caps, diving suits, jeans, etc.

	FEATURES:
1.	This machine is specially designed for stitching various irregulary-shaped items such as convex, spheroidal, tubular, bowl-like, etc. which can not be done by a conventional flat bed, needle plate platform sewing machine.
2.	New type rotary take-up ensures uniform thread tensions at low tension setting.
3.	Off-center axis hook has been adopted which reducing skip stitching and thread breakage considerably.
4.	Hemmer & folder are optional.
5.	Specially designed temporary storage for oil that convey to the bobbin. Flow of oil valve can micro-adjusted freely.
6.	Elastic & lace feeding device for zig-zag sewing machine, special for sewing high quality ladies' & gentlemen's underwear. (optional)
7.	Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.
