01_Flat Bed Type ( for Light )

11. 2280 Series

High Speed, Single Needle, Lock Stitch,

Rotary Take-up, Drop Feed,

Zigzag Industrial Sewing Machine

for Light Material

Fig.1

Fig.2

Fig.3

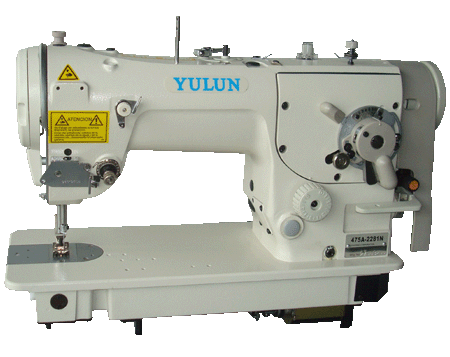

475A-2280N

475A-2281N

475A-2283N

475A-2286N

475A-2284N

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

Plain zigzag

3-step 4-point zigzag

475A-2280N-S

475A-2281N-S

475A-2283N-S

475A-2286N-S

475A-2284N-S

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

Plain zigzag

3-step 4-point zigzag

475A-2280N-S-R

475A-2281N-S-R

475A-2283N-S-R

475A-2286N-S-R

475A-2284N-S-R

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

Plain zigzag

3-step 4-point zigzag

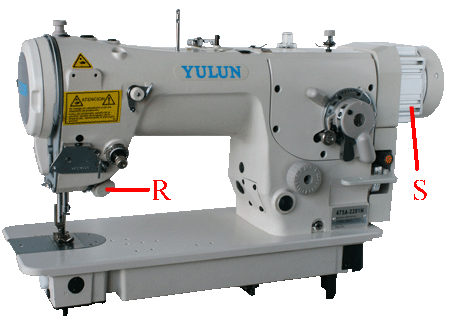

Standard Machine

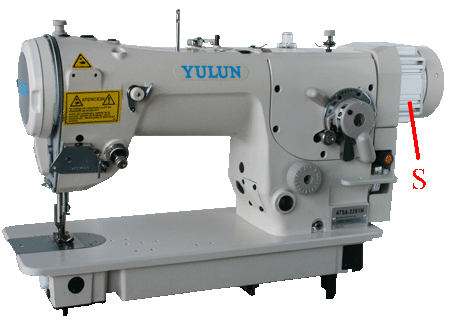

S: direct drive servo motor

R: electronic control backstitch, hand pressure

1. SPECIFICATIONS :

MODEL	STITCH PATTERN	MAX. BIGHT	MAX. STITCH LENGTH	MAX. SPEED (S.P.M.)	APPLICATIONS
475A-2280N	Plain zigzag	5.0 mm	2.0 mm	5,000	Attaching lace, making shoulder straps, ... etc.
475A-2281N	Plain zigzag	8.0 mm	1.3 mm	5,000	Basting, tacking and general zigzag work lace attaching.
475A-2283N	2-step 3-pint zigzag	8.0 mm	-	5,000	Elastic seaming and attaching elastic straps to corsets and bras. Also decorative sewing.
475A-2286N	3-step 4-point zigzag	8.0 mm	1.3 mm	5,000	Elastic seaming and attaching elastic straps to corsets and bras. Also decorative sewing.
475A-2284N	Plain zigzag 3-step 4-point zigzag	8.0 mm	-	5,000	Basting, tacking and general zigzag work lace attaching. Elastic seaming and attaching elastic straps to corsets and bras. Also decorative sewing.

2. FEATURES :

1.	With the improved needle position shifting lever, fine adjustment of needle location is simplified. Moreover. needle position can be fixed firmly by means of a stopper provided on the lever.
2.	New type rotary take-up ensures uniform thread tensions at low tension settings.
3.	Off-center axis hook has been adopted reducing skip stitching and thread breakage considerably.
4.	Hemmer & folder are optional.
5.	Fully improved built-in type bobbin winder makes it easier to adjust the amount of thread to be would in bobbin and thread tension when winding bobbin.
6.	Elastic feeding device for zigzag sewing machine, special for sewing high quality ladies' & gentlemen's underwear. ( optional )
7.	Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.
8.	The new presser bar pressure regulating knob enables the simple adjustment of presser bar pressure.
9.	Max. bight width : 10 mm (Factory-set to 8 mm at the time of delivery)
10.	Lift of presser foot : by the knee lifter 14 mm (Factory-set to 10 mm at the time of delivery)

3. APPLICATIONS :

1.	Attaching laces, making shoulder straps, and general zigzag works.
2.	Attaching elastic trim or lace to leg or waist sections of ladies' body suits, swim suits.
3.	Attaching elastic trim or lace to corsets, bras, etc. Also can work for decorative sewing.
4.	Decorative sewing for ladies' body suits, negligee, etc.
5.	For felling and joining collar on men's jacket, decorative sewing & fasten articles.

4. SEWING EXAMPLE

▼ (1) 475A-2281N plain zigzag	▼ (2) 475A-2281N	▼ (3) 475A-2281N plain zigzag

▼ (4) 475A-2281N	(5) 475A-2281N	▼ (6) 475A-2281N plain zigzag
