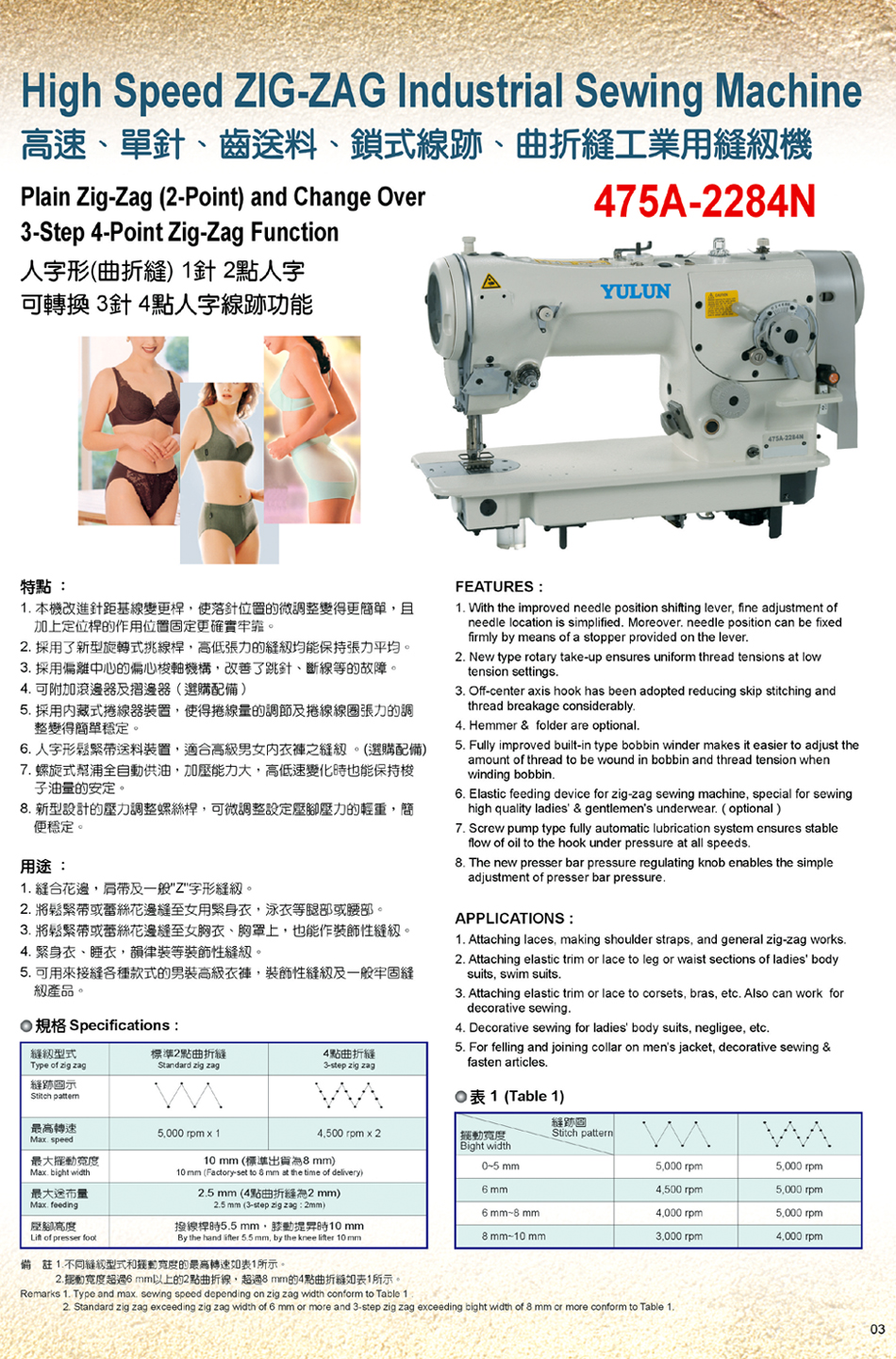

15.   475A-2284N

¡@

Flat Bed, High Speed, Lock Stitch,

Zigzag Industrial Sewing Machine

Plain Zigzag and Change Over 3-Step 4-Point Zigzag Function

For Light Materials

¡@

¡@

-

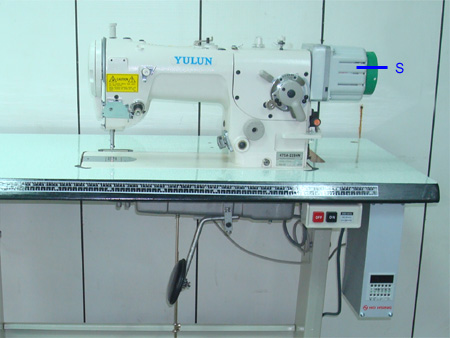

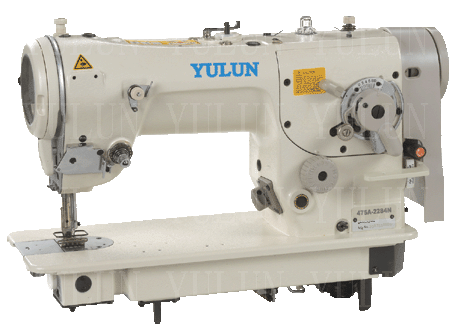

475A-2284N

Standard

475A-2284N-S

S: Direct Drive Servo Motor

¡@

  1. SPECIFICATIONS :
          Model

475A-2284N

          Type of zigzag

Standard zigzag

3-step 4-point zigzag

          Stitch Pattern

¡@



          Max. speed

5,000 rpm x 1

4,500 r.m.p. x 2
          Needle

DPx5 # 9 - # 16

DPx5 # 9 - # 16

          Max. bight width

10 mm ( Factor-set to 8 mm at the time of delivery )

          Max. feeding

2.5 mm ( 3-step zigzag : 2 mm )

          Lift of presser foot

By the hand lifter 5.5 mm , by the knee lifter 10 mm

-

  2. APPLICATIONS :
1. Attaching laces, making shoulder straps, and general zigzag works.
2. Attaching elastic trim or lace to leg or waist sections of ladies' body suits, swim suits.
3. Attaching elastic trim or lace to corsets, bras, etc. Also can work for decorative sewing.
4. Decorative sewing for ladies' body suits, negligee, etc.
5. For felling and joining collar on men's jacket, decorative sewing & fasten articles.
.

  3. FEATURES :
1. With the improved needle position shifting lever, fine adjustment of needle location is simplified.
¡@ Moreover. needle position can be fixed firmly by means of a stopper provided on the lever.
2. New type rotary take-up ensures uniform thread tensions at low tension settings.
3. Off-center axis hook has been adopted reducing skip stitching and thread breakage considerably.
4. Hemmer & folder are optional.
5. Fully improved built-in type bobbin winder makes it easier to adjust the amount of thread to be would in bobbin and thread tension when winding bobbin.
6. Elastic feeding device for zigzag sewing machine, special for sewing high quality ladies' & gentlemen's underwear. ( optional )
7. Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.
8. The new presser bar pressure regulating knob enables the simple adjustment of presser bar pressure.

--

  4. SEWING EXAMPLE 1 :
  (1) 475A-2284N for plain zigzag    (2)  475A-2284N for plain zigzag



(3) 475A-2284N for plain zigzag (4) 475A-2284 for plain zigzag
(5) 475A-2284N for plain zigzag (6) 475A-2284N for plain zigzag
(7) 475A-2284N for plain zigzag (8) 475A-2284N for plain zigzag
¡@ ¡@

-

  5. SEWING EXAMPLE 2 :

  (1) 475A-2284N for 3-Step 4-Point zigzag

  (2)  475A-2284N for 3-step 4-point zigzag

-
