25. 906H Series

Post Bed, Single Needle, Lock Stitch,

Single Presser-Foot, Lower Feed,

Zigzag Industrial Sewing Machine

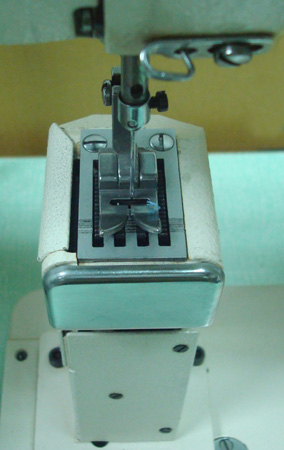

Lower Feed

Fig. 1

Fig. 2

Front Side

Fig. 3

1. SPECIFICATIONS :

Model	Stitch Pattern	Stitch Pattern	Max. Bight	Needle	Cylinder Length	Max. Speed ( S.P.M.)
475A-906-H		Plain zigzag	12.0 mm	DPx17 #14 - #22	235 m/m	2000 s.p.m.
475A-926-H		2-step 3-point zigzag	12.0 mm	DPx17 #14 - #22	235 m/m	2000 s.p.m.
475A-936-H		3-step 4-point zigzag	12.0 mm	DPx17 #14 - #22	2354 m/m	2000 s.p.m.

2. APPLICATIONS :

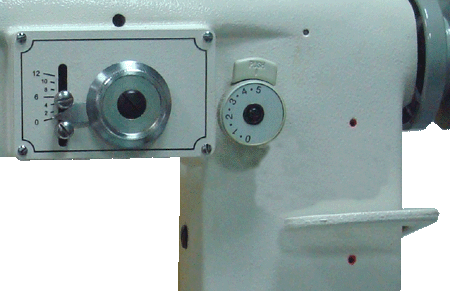

Feed amount is adjustable easily by setting a suitable number on the graduated dial. (Fig. 2)

Suitable for sewing concave, convex, spheroid, tubular, bowl-like objects.

　

3. SEWING EXAMPLE:

▼ (1) 475A-906-H	▼ (2) 475A-906-H
-	-
