13.    306M Series

　

Flat Bed , Single Needle , Lock Stitch,

Lower Feed , Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

　

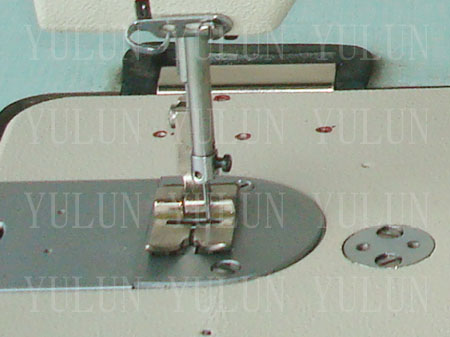

Lower Feed

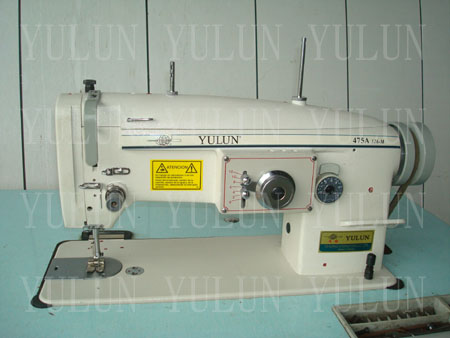

Front Side

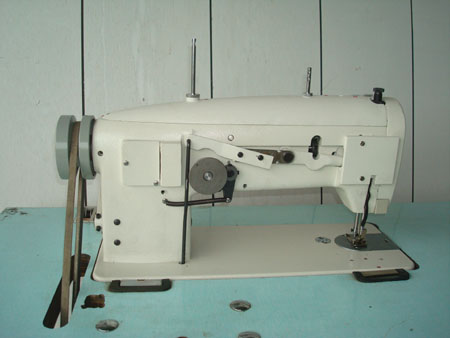

Back Side

-

  1. SPECIFICATION :

MODEL

STITCH

PATTERN

MAX.

BIGHT

MAX.

STITCH

LENGTH

Presser Foot Clearance (knee/hand)

Needle Type

MAX.

SPEED

(s.p.m.)
475A-306-M

Plain zigzag

10.0 mm

(15/32")

1.5 mm

(20 spi)

 10 mm DPX17 #14 - #24 2000 s.p.m.
475A-326-M

2-step 3-point zigzag

12.0 mm

(26/64")

1.3 mm

(16 spi)

 10 mm DPx17 #14 - #24 2000 s.p.m.
475A-336-M

3-step 4-point zigzag

12.0 mm

(26/64")

1.3 mm

(16 spi)

 10 mm DPx17 #14 - #24 2000 s.p.m.
475A-345-M

Optional Cams

To see below

12.0 mm

( 15 / 32" )

1.3 mm

(16 spi)

 12 mm SPx17 #14 - #24 2000 s.p.m.

-

  2. OPTIONAL CAMS for Model 475A-345-M

Stitch Pattern

-

CAM NO.

345-203

345-402

345-403
Stitch Pattern

-

CAM NO.

345-411

345-601

345-603

-

  3. FEATURES :

1 :

Graduated dial for feed adjustment.

Feed amount is adjustable easily by setting a suitable number on the gr4aduated dial.
2 :

Large hook.

By adoption of large hook, the winding volume of lower thread is increased and due to this feature, the frequency of lower thread replacement is minimized.
3 :

Convenient reverse feed lever.

Reverse feed can be performed by finger soft touch of press-down lever with spring return.
4 :

Particularly well suited for sewing problem materials.

Especially such having slippery or tacky surfaces, elastic materials.
5 :

When sewing multi-layer leather materials, the inner layer will not move, with strong climbing capability and even stitch.
6 :

Presser foot clearance ( knee / hand ) : 12mm ,

Needle type : DPx17 #14 - #24

-

  4.  APPLICATIONS :

For sewing medium to thick weight materials, leather cloth, travel bag, luggage, shoes, sports shoe, sports goods, tarpaulins, jeans, rubber coated cloth, leather goods & joining multi-layer pieces (seamless sewing).

-

  5. SEWING EXAMPLE :

(1)  475A-326-M  for 2-step 3-point zigzag

 (2)  475A-336-M  for 3-step 4-point zigzag

-

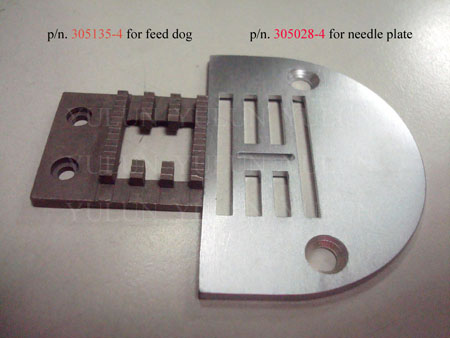

  6.  PARTS

(1)

(2)

-

　

Flat Bed , Single Needle , Lock Stitch,

Lower Feed , Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

13.    306M Series

-

　

　

　

　

475A-2805-L (M)

　
