34.    205M Series

　

Cylinder Bed, 1-Needle, Lock Stitch,

Upper & Lower Feed,  Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

　

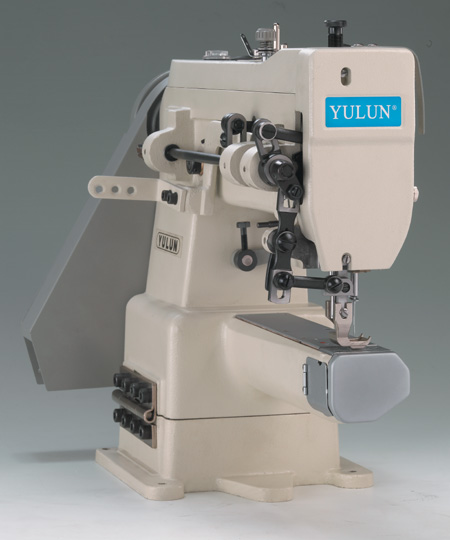

BACK SIDE

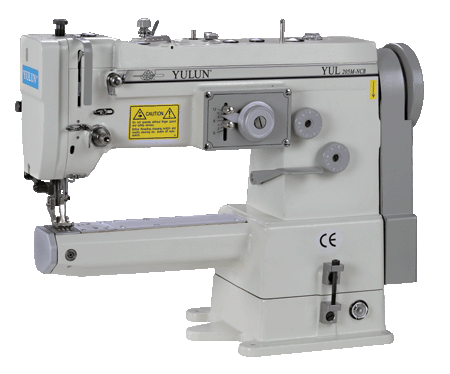

FRONT SIDE

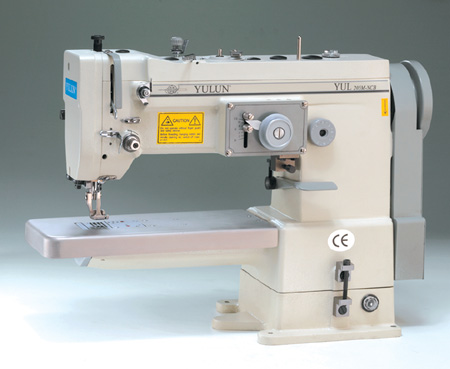

 p/n. 205350 : Platform board (optional)

--

  1. SPECIFICATIONS:

MODEL

STITCH

PATTERN

MAX.

BIGHT

MAX.

STITCH

LENGTH

MAX.

SPEED

( S.P.M.)

CYLINDER

DIA.

CYLINDER

LENGTH

CIRCUMFERENCE

OF THE ARM
475A-205-M

Plain zigzag

 10.0 mm 1.3 mm 2,000

50 mm

 230 mm

220 m/m
475A-225-M

2-step 3-point zigzag

 10.0 mm 1.5 mm 2,000

50 mm

 230 mm 220 m/m
475A-235-M

3-step 4-point zigzag

 10.0 mm 1.3 mm 2,000

50 mm

 230 mm 220 m/m

-

  2. PARTS

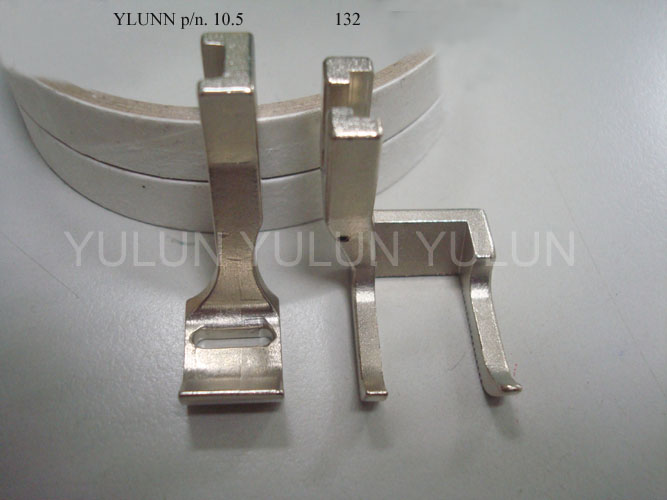

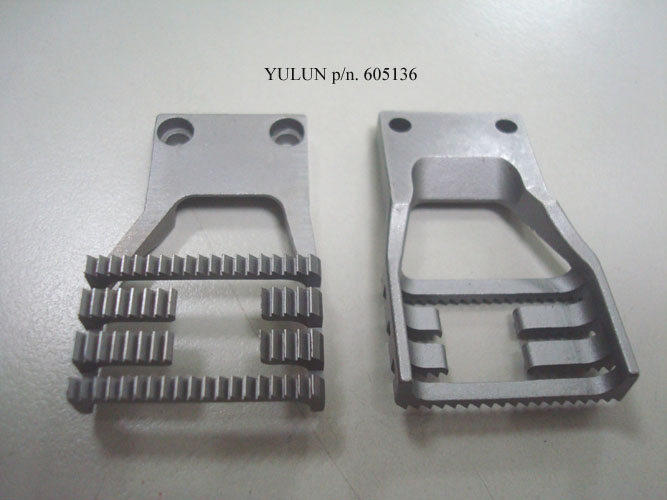

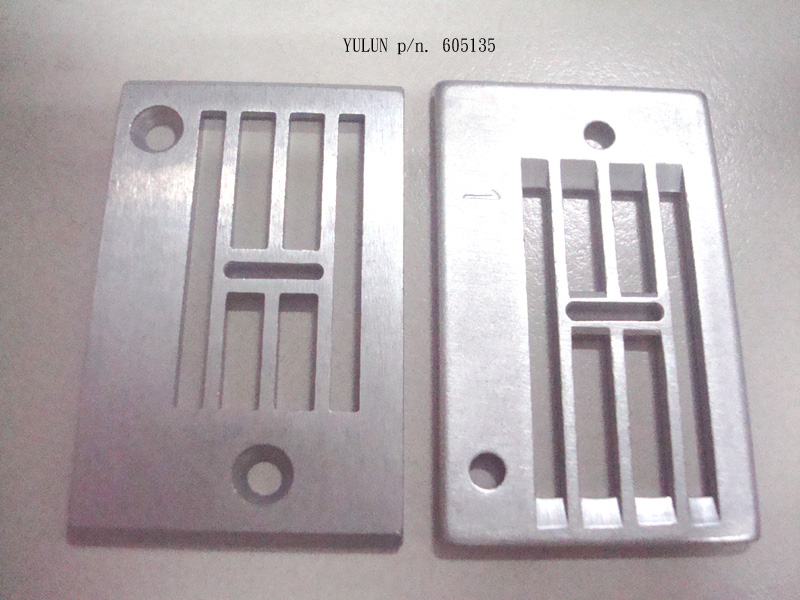

p/n. 10.5 & 132 p/n. 605135 p/n. 605136

-

  3. APPLICATIONS :

For sewing medium to thick fabrics, bags, attaché cases, shoes, sports shoes, caps, gloves, canvas, tent, garments, jeans, golf gloves, diving suits, sports goods, sofa, leather & cylindrical products.

  4. FEATURES :

  1. Graduated dial for feed adjustment.

    Feed amount is adjustable easily by setting a suitable number on the graduated dial.

  2. Large hook.

    By adoption of large hook, the winding volume of lower thread is increased and due to this feature, the frequency of lower thread replacement is minimized.

  3. Convenient reverse feed lever.

    Reverse feed can be performed by finger soft touch of press-down lever with spring return.

  4. Automatic oil reservoir lubrication system.

  5. Particularly well suited for sewing problem materials.

    Especially such having slippery or tacky surfaces, elastic materials.

  6. Suitable for sewing concave, convex, spherical, tubular, bowl-like objects.

  7. Suitable for sewing small pieces, odd and small curved uneven shapes, with strong climbing capability and even stitch.

  8. When sewing multi-layer leather fabrics, the inner layer will not move.

  9. Hemming and piping attachments can be fitted for sewing various edges.

-

  5. INFORMATION FOR MORE:

  1. INSTRUCTION

　

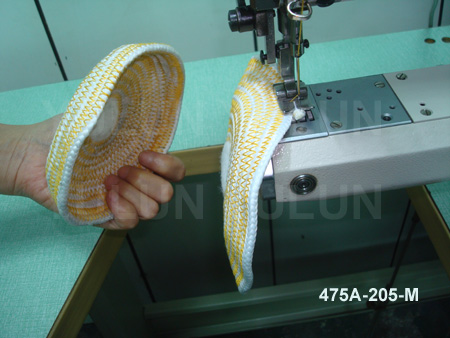

  6. SEWING EXAMPLE :

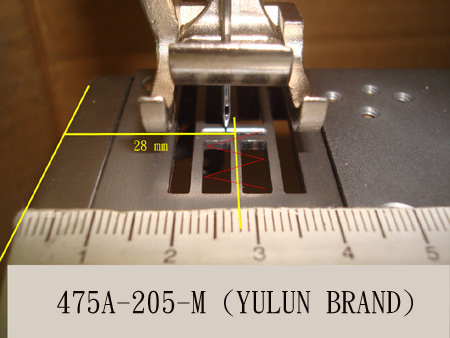

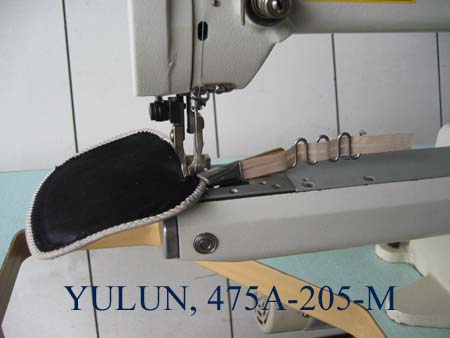

(1) 475A-205-M (2) 475A-205-M  video

　

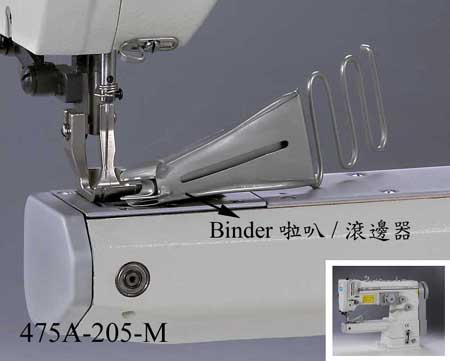

  7. About Binder, Folder & Hemmer (optional)

▼  (1) 475A-205 (225, 235) -M ▼  (2) 475A-205 (225, 235) -M
▼  (3) 475A-205-M ▼  (4) 475A-205 (225, 235) -M


-

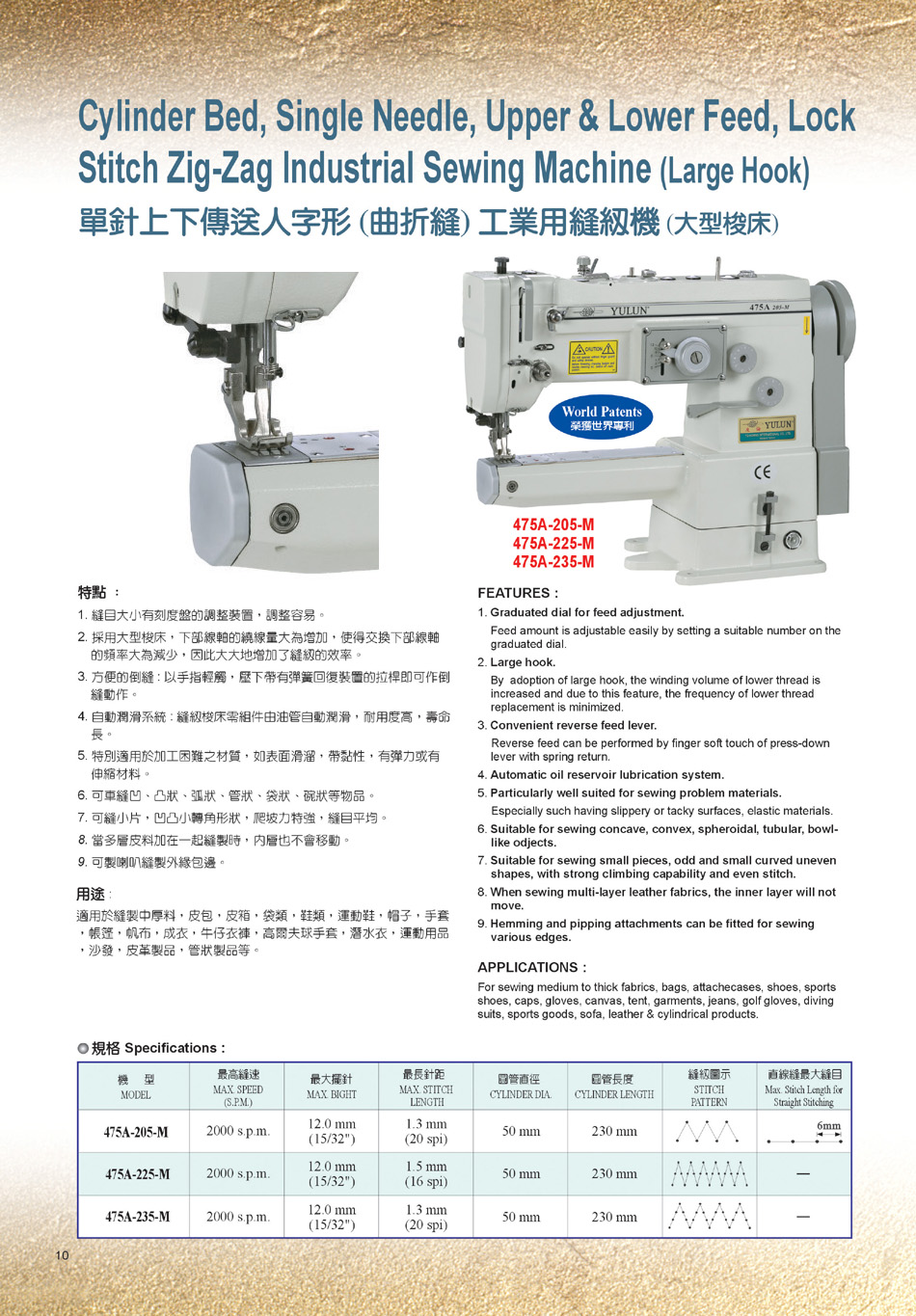

  8. CATALOG :

　

Cylinder Bed, 1-Needle, Lock Stitch,

Upper & Lower Feed,  Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

34.    205M Series

　

　

　

　
