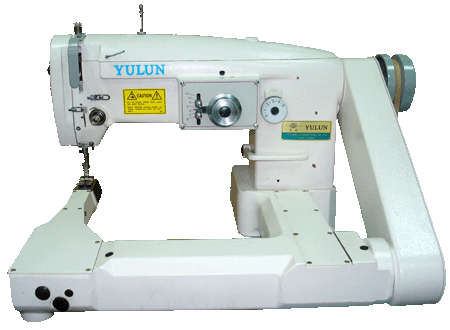

45. 706A Series

-

-

Lower Feed

 Front

-

¡@

    1. SPECIFICATIONS :

Model Stitch Pattern Max. Bight Needle Type Cylinder Dia. Circumference of the Arm Presser foot clearnace Max. Speed
475A-706-A

plain zigzag

 10 mm DPx17 x #14-#22 40 mm 145 mm 10 mm 1450 s.p.m.
475A-726-A

2-step 3-point zigzag

 10 mm DPx17 x #14-#22 40 mm 145 mm 10 mm 1450 s.p.m.
475A-736-A

3-step 4-point zigzag

 10 mm DPx17 x #14-#22 40 mm 145 mm 10 mm 1450 s.p.m.

¡@

    2. FEATURES :

  1. Graduated dial for feed adjustment.

Feed amount is adjustable easily by setting a suitable number on the graduated dial.

  1. Small Hook

Suitable for sewing tubular products with a smaller diameter

¡@

    3.  APPLICATIONS :

For sewing medium to thick weight materials, leather cloth, travel bag, luggage, shoes, sports shoe, sports goods, tarpaulins, jeans, rubber coated cloth, leather goods.



    4.  Sewing example with video

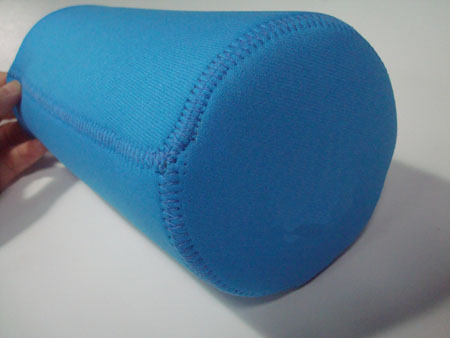

(1)  475A-706-A   plain zigzag

for stubby coolers

(2)   475A-706-A   (video)

for stubby coolers

¡@
¡@

45. 706A Series

¡@

¡@

¡@

¡@
