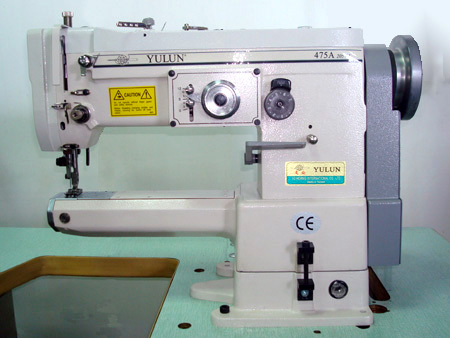

35. 206M Series
¡@
Cylinder Bed, 1-Needle, Lock Stitch,
Lower Feed, Heavy-Duty
Zigzag Industrial Sewing Machine ( Large
Hook )
¡@
|
|
|
Lower Feed

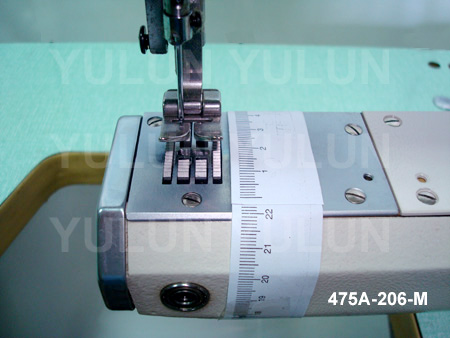

Circumference of the Arm : 220 m/m |
Front Side
Standard Head |

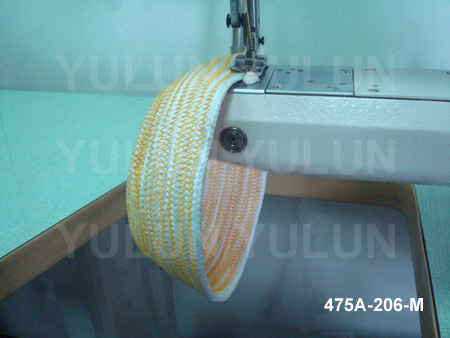

For sewing concave, convex,
spheroidal, tubular, bowl-like objects. |
¡@
¡@
1.
SPECIFICATIONS:
MODEL |
STITCH
PATTERN |
MAX.
BIGHT |
MAX.
STITCH
LENGTH |
Circumference of the Arm |
Presser foot clearance |
MAX.
SPEED
( S.P.M.) |
475A-206-M |
Plain zigzag |
10.0 mm |
1.3 mm |
220 m/m |
10 m/m |
2,000 |
475A-226-M |
2-step 3-point zigzag |
10.0 mm |
1.5 mm |
220 m/m |
10 m/m |
2,000 |
475A-236-M |
3-step 4-point zigzag |
10.0 mm |
1.3 mm |
220 m/m |
10 m/m |
2,000 |
-
2. APPLICATIONS :
For sewing medium to thick fabrics, bags, attaché cases, shoes,
sports shoes, caps, gloves, canvas, tent, garments, jeans, golf
gloves, diving suits, sports goods, sofa, leather & cylindrical
products.
-
3. FEATURES :
-
Graduated dial for feed adjustment.
Feed amount is adjustable easily by setting a suitable number on the
graduated dial.
-
Large hook.
By
adoption of large hook, the winding volume of lower thread is
increased and due to this feature, the frequency of lower thread
replacement is minimized.
-
Convenient reverse feed lever.
Reverse feed can be performed by finger soft touch of press-down
lever with spring return.
-
Automatic oil reservoir
lubrication system.
-
Particularly well suited for sewing problem materials.
Especially such having slippery or tacky surfaces, elastic
materials.
-
Suitable for sewing
concave, convex, spherical, tubular, bowl-like objects.
-
Suitable for sewing small
pieces, odd and small curved uneven shapes, with strong climbing
capability and even stitch.
-
When sewing multi-layer
leather fabrics, the inner layer will not move.
-
Hemming and piping
attachments can be fitted for sewing various edges.
-
Cylinder Bed, 1-Needle, Lock Stitch,
Lower Feed, Heavy-Duty
Zigzag Industrial Sewing Machine ( Large
Hook )
35. 206M Series |
|
