24. 905H Series

　

Post Bed, Single Needle, Lock Stitch,

Upper & Lower Feed,

Zigzag Industrial Sewing Machine

　

-

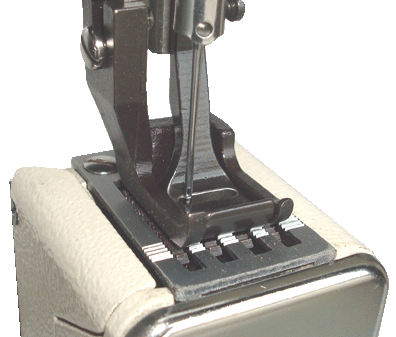

Upper & Lower Feed

Fig. 1

Front Side

Fig. 2

Back Side

Fig. 3
　

  1. SPECIFICATIONS :

Model

Stitch Pattern

Stitch Pattern

Max. Bight

Needle

Cylinder Length

Max. Speed

( S.P.M.)

475A-905-H

Plain zigzag

12.0 mm

DPx17 #14 - #22

235 m/m

2000 s.p.m.

475A-925-H

2-step 3-point zigzag

12.0 mm

DPx17 #14 - #22

235 m/m

2000 s.p.m.

475A-935-H

3-step 4-point zigzag

12.0 mm

DPx17 #14 - #22

2354 m/m

2000 s.p.m.

　

  2. APPLICATIONS :

  1. Feed amount is adjustable easily by setting a suitable number on the graduated dial.

  2. Suitable for sewing concave, convex, spheroid, tubular, bowl-like objects.

　

   3. SEWING EXAMPLE:

▼ (1) 475A-905-H ▼ (2) 475A-905-H
- -

　
