21.    2505 Series

¡@

Post Bed, High Speed, Single Needle, Lock Stitch,

Rotary Take-up,  Drop Feed,

Zigzag Industrial Sewing Machine

for Light Materials

¡@

¡@

¡@

¡@

¡@

-

-

Drop Feed

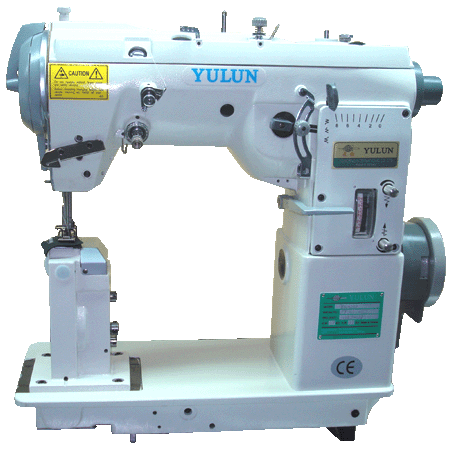

FRONT

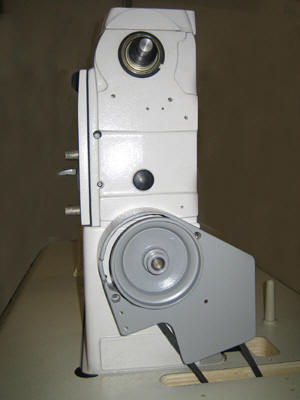

BACK
¡@

Third-generation

Circumference of the post : 280 mm

 ¡@

¡@

  1.  SPECIFICATIONS :

MODEL

STITCH

PATTERN

MAX.

BIGHT

Needle

Type

MAX.

SPEED

(S.P.M.)

APPLICATIONS
475A-2525-L

Plain zigzag

 5.0 mm

DPx5 # 9 - #13

or

DPx5 #14 - #22

 3,600

Attaching lace, making underwear, shoulder straps of bras, hats, shoes, leather bags....etc.
475A-2505-L

Plain zigzag

 8.0 mm

DPx5 # 9 - #13

or

DPx5 #14 - #22

 3,600

For concave, convex, bag, bowl-like objects, leather bag.... General zigzag work and lace attaching.
475A-2535-L

3-step 4-point zigzag

 8.0 mm

DPx5 # 9 - #13

or

DPx5 #14 - #22

 3,600

Attaching elastic straps to underwear, bras, bodysuits. Also decorative sewing for shoes, hats...etc.

Remarks: Speed depends on the materials and the type of operation.

¡@

  2.  POST SIZE : Third-generation

-

  3.  APPLICATIONS :

  1. Attaching concave, convex, bowl-like, spherical, tubular zigzag works.

  2. Attaching elastic trim or lace to corsets, bras, shoulder strap, leg or waist sections of ladies' body suits, swim suits.

  3. For sewing ladies' body suits, negligee, men's underwear, sports wear, etc.
  4. For seamless sewing of underwear, pantyhose, body suits, leisure suits.
  5. For sewing fasten articles and special items, such as shoe cover, handbag, leather goods, caps, diving suits, jeans, etc.

-

  4. FEATURES:

  1. This machine is specially designed for stitching various irregulary-shaped items such as convex, spheroidal, tubular, bowl-like, etc. which can not be done by a conventional flat bed, needle plate platform sewing machine.
  2. New type rotary take-up ensures uniform thread tensions at low tension setting.
  3. Off-center axis hook has been adopted which reducing skip stitching and thread breakage considerably.
  4. Hemmer & folder are optional.
  5. Specially designed temporary storage for oil that convey to the bobbin. Flow of oil valve can micro-adjusted freely.
  6. Elastic & lace feeding device for zigzag sewing machine, special for sewing high quality ladies' & gentlemen's underwear. (optional)
  7. Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.

-

  5. SEWING EXAMPLE & VIDEO

(1) 475A-2535-L (2)
-

-

   6. HISTORY

1nd generation

Discontinued

-

2nd generation

Discontinued

3nd generation

Production

Circumference of the post :

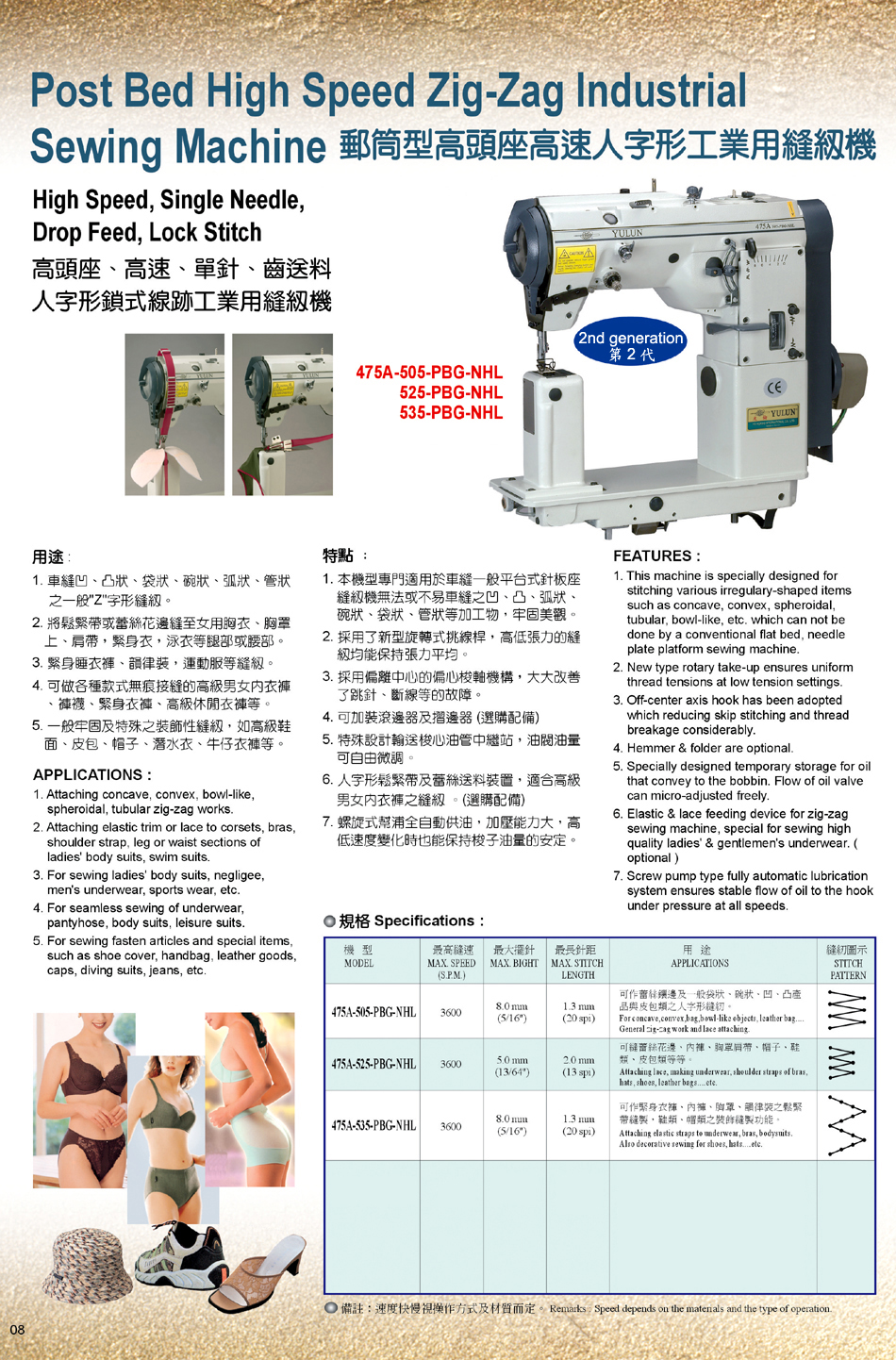

Catalogues

Circumference of the post :

Catalogues

Circumference of the post : 280 mm

Catalogues

¡@

Post Bed, High Speed, Single Needle, Lock Stitch,

Rotary Take-up,  Drop Feed,

Zigzag Industrial Sewing Machine

for Light Materials

¡@

21.    505 Series   ( for Light Materials )

¡@

¡@

¡@

¡@

475A-2805-L (M)

¡@
