Feed Off The Arm Type, High Speed,
Single Needle, Lock Stitch,
Rotary Take-up, Drop
Feed,
Zigzag Industrial Sewing Machine
for Light Materials
-
-

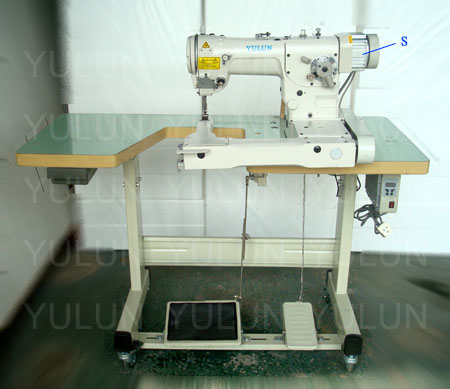

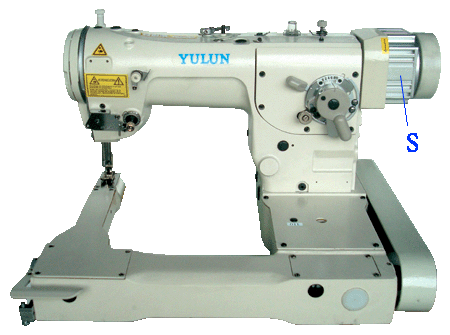

Front Side
-
1.
SPECIFICATIONS : M:
Medium Materials L : Light Materials
MODEL
STITCH
PATTERN
STITCH
PATTERN
MAX.
SPEED
( s.p.m.)
MAX.
STITCH
LENGTH
MAX.
SPEED
( S. P. M. )
APPLICATIONS
475A-2805-M-S
Plain
zigzag
8.0 mm
1.3 mm
3,200
For sewing
medium to thick weight materials, cylindrical objects, bags,
shoes, sports shoes, diving suits, boots, sports goods,
sails, tarpaulins, gaments, body suits, jeans, stretchable
materials, rubber coated cloth, leather goods & joining
multi-layer pieces (seamless sewing).
475A-2805-L-S
Plain
zigzag
8.0 mm
1.3 mm
3,200
Attaching
lace, making underwear, shoulder straps of bras, seamless
sewing.
475A-2825-L-S
Plain
zigzag
5.0 mm
2.0 mm
3,200
Attaching
lace, making underwear, shoulder straps of bras, seamless
sewing.
475A-2883-L-S
2-step 3-point zigzag
8.0 mm
1.3 mm
3,200
Attaching
elastic straps to underwear, bras, bodysuits. Also
decorative seamless sewing.
475A-2886-L-S
3-step
4-point zigzag
8.0 mm
1.3 mm
3,200
Attaching
elastic straps to underwear, bras, bodysuits. Also
decorative seamless sewing.
475A-2884-L-S
plain zigzag
(2-point)
and change
over
3-step 4-point
zigzag
function
machine
8.0 mm
1.3 mm
3,000
Decorative
sewing for shoes, bags, spheroidal, bowl-like & tubular
objects. It can be used for sewing modem, trendy
form-fitting underwear & shirts for women. Various pattem
cams are available for replacement, such as scallop, zigzag,
blind stitch...etc.
Remarks: Speed
depends on the materials and the type of operation.
M: Medium Materials
L: Light Materials
S:
Direct Drive Servo Motor
2. BRIEF INTRODUCTION :
After many years of R&D, We've
successfully developed the feed off the arm, high speed zigzag
industrial sewing machine which can stitch various various
irregulary-shaped items such as concave, convex, spheroidal,
tubular, bowl-like shapes etc. which can not be done by a
conventional flat bed type sewing machine. This machine is
specially designed for sewing quality underwear, corsets, bras,
swimsuits, body suits, shoes and bags, etc. it can achieve fast
& nice decorative effects through the variation of zigzag
stitching patterns; in addition, it can help customers to create
new & better quality items, as well as to promote production
capabilities.
3. FEATURES:
1.
Graduated dial for feed adjustment.
Feed amount is adjustable easily by
setting a suitable number on the graduated dial.
2.
LARGE HOOK.
By adoption of large hook, the winding
volume of lower thread is increased, the frequency of lower
thread re
placement is minimized. Consequently, sewing efficiency
is a remarkably heightened.
3.
Convenient reverse feed lever.
Reverse feed can be performed by finger
soft touch of press-down lever with spring return.
4.
Semi automatic lubrication system
The lubrication to sewing hook components
is made automatically from the oil reservoir and ensures high
efficiency in the long work.
-

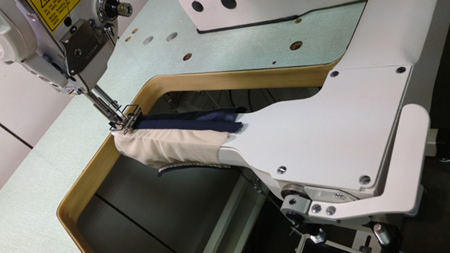

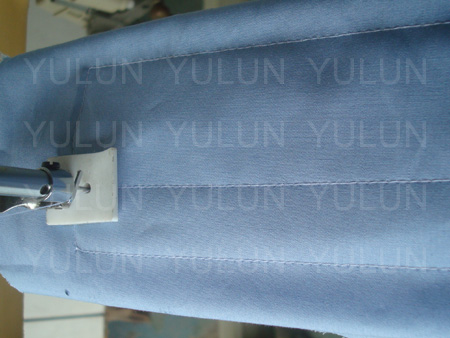

4. SEWING EXAMPLE
with Video ( Standard Hook)
▼
(1)
475A-2805-L-S
▼
(2)
475A-2805-L-S

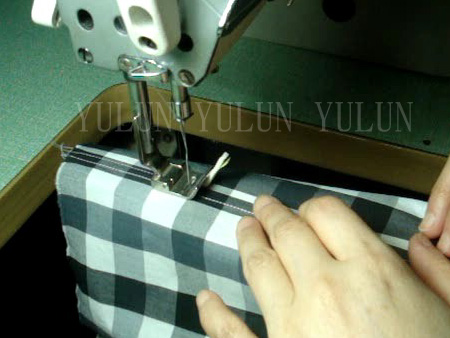

5. SEWING
EXAMPLE with Video ( Short Hook)
(1)
(2)
475A-2805-L-S
-
-
5.
SEWING SAMPLE & VIDEO
for the Straight Stitch Pattern
▼
(1) 475A-2805-L-S
▼ (2)
475A-2805-L-S
It
can be
adjusted to
straight
stitch also,
the video follows.
( For the throat plate of norm straight stitch
pattern )
It can be
adjusted to
straight
stitch also,
the video follows.
( For the throat plate of zigzag stitch
pattern )

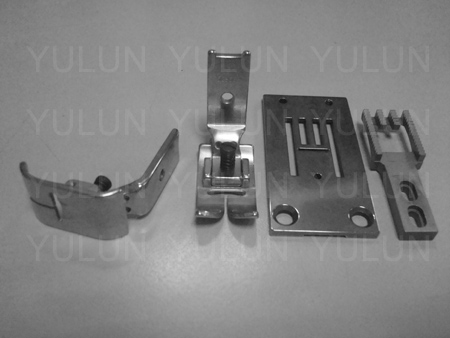

Presser Feet :
p/n.
438109-T35F
Throat Plate :
p/n. 438109-T35P
Feed Dog :
p/n.
705567-T35D

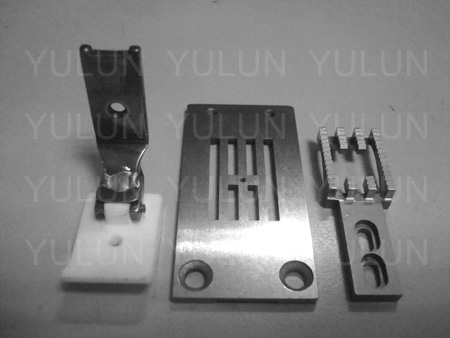

Presser Feet :
p/n.
503689
Throat Plate :
p/n.
805006
Feed Dog :
p/n.
705567
▼
(3) 475A-2805-L-S
▼
(4) 475A-2805-L-S
Complete Set

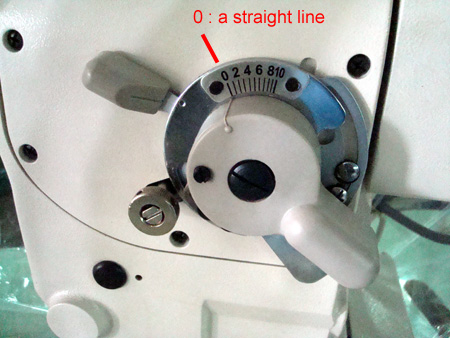

The Numbers on the stitch length dial are calibrated in
"0 mm"
