42.    705M Series

　

Feed off The Arm, 1-Needle, Lock Stitch,

Upper & Lower Feed,  Heavy-Duty Materials

ZIGZAG INDUSTRIAL SEWING MACHINE (LARGE HOOK)

　

FRONT SIDE

Second-generation

-

  1. SPECIFICATIONS :

MODEL

STITCH

PATTERN

MAX.

BIGHT

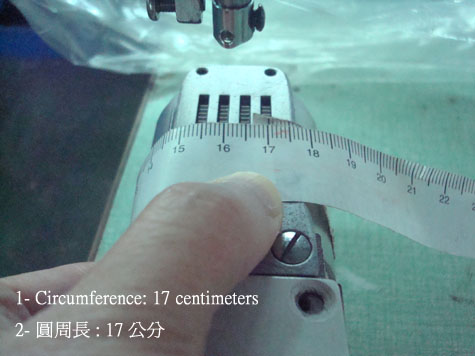

CIRCUMFERENCE

CYLINDER

DIA.

　

MAX.

SPEED

( S.P.M.)
475A-705-M

plain zigzag

 12.0 m//m 170 m/m

50 m/m

 2,000
475A-725-M

2-step 3-point zigzag

 10.0 mm 170 m/m

50 m/m

 2,000
475A-735-M

3-step 4-point zigzag

 10.0 m/m 170 m/m

50 m/m

 2,000

Remarks: Speed depends on the materials and the type of operation.

-

  2. INFORMATIONAL MORE :

_

　

  3. APPLICATIONS :

For sewing medium to thick weight materials, cylindrical objects, bags, shoes, sports, diving suits, boots, sports goods, sails, tarpaulins, garments, jeans, stretchable materials, rubber coated cloth, leather goods & joining multi-layer pieces (seamless sewing).

　

  4. FEATURES :

1.

Graduated dial for feed adjustment.

Feed amount is adjustable easily by setting a suitable number on the graduated dial.
2.

Large hook.

By adoption of large hook, the winding volume of lower thread is increased and due to this feature, the frequency of lower thread replacement is minimized.
3.

Convenient reverse feed lever.

Reverse feed can be performed by finger soft touch of press-down lever with spring return.
4. Semi-Automatic oil reservoir lubrication system.
5.

Particularly well suited for sewing problem materials.

Especially such having slippery or tacky surfaces, elastic materials.
6. Suitable for sewing concave, convex, spherical, tubular, bowl-like objects.
7. When sewing multi-layer leather materials, the inner layer will not move, with strong climbing capability and even stitch.
8.

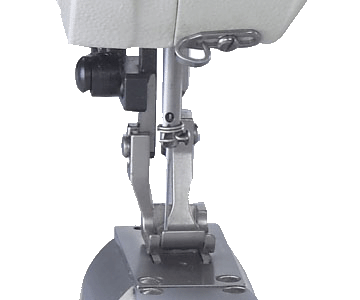

Presser foot clearance (knee / hand) : 10 mm,

Needle type : DPx17 #14-#22

-

  5. MORE INFORMATION :

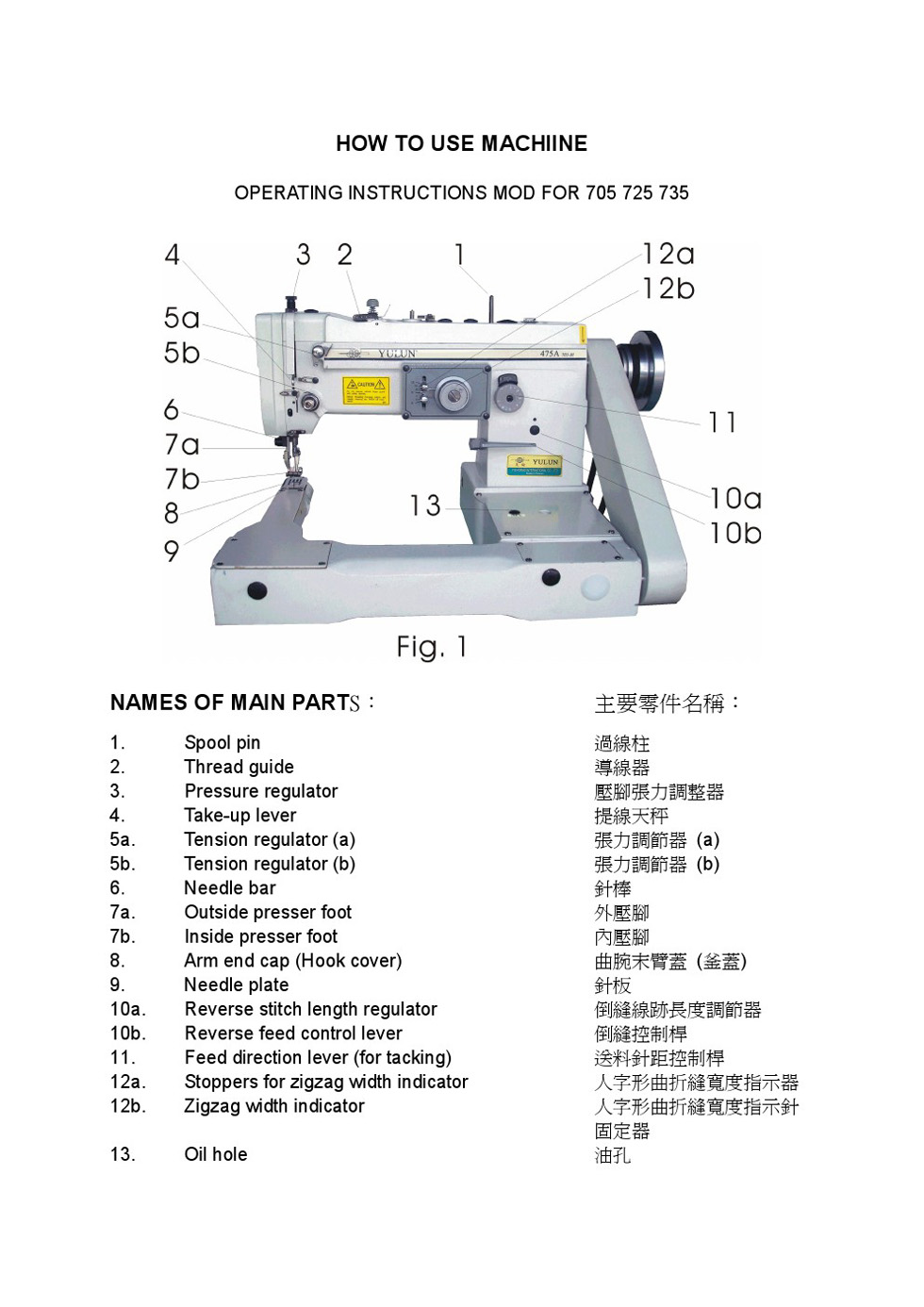

  1. NAMES OF MAIN PARTS

  2. What parts are required when changing the stitch pattern?

　

  6. THE SEWING EXAMPLES & VIDEO :

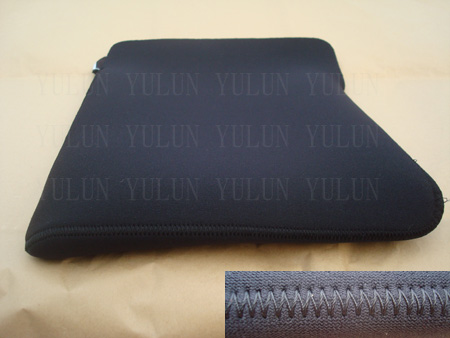

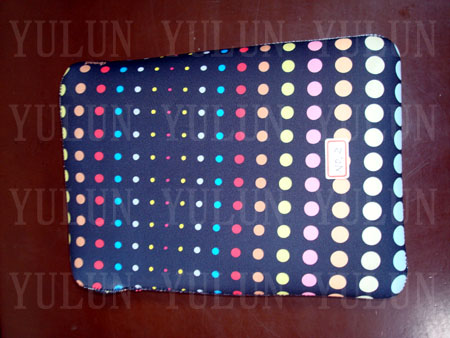

▼  (1) 475A-705-M  ( laptop covers ) ▼   (2) 475A-705-M ( video of laptop covers )
▼  (3) 475A-705-M  ( laptop covers ) ▼  (4)  475A-705-M  (video of laptop covers )
▼   ( 5) 475A-705-M  ( laptop covers ) ▼ (6) Neoprene Fabric
　

-

Feed off The Arm, 1-Needle, Lock Stitch,

Upper & Lower Feed,  Heavy-Duty Materials

ZIGZAG INDUSTRIAL SEWING MACHINE (LARGE HOOK)

42.    705M Series

　

　

　

　

475A-2805-L (M)

　
