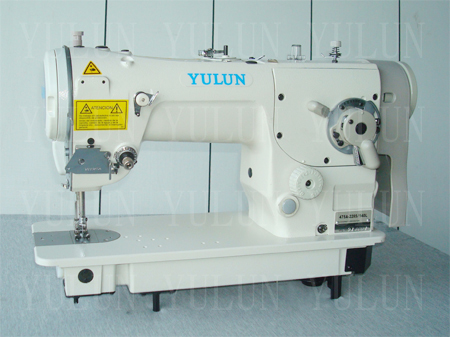

Faggoting High Speed Zigzag Industrial Sewing Machine

High Speed, Single Needle, Drop Feed, Lock Fagot Stitch

　

-

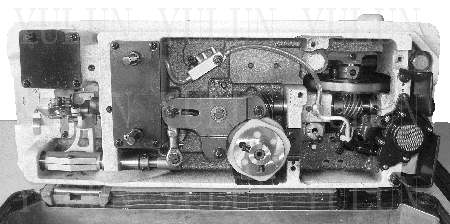

Bottom Standard
S: Direct Drive Servo Motor

　

   1. SPECIFICATIONS:

Model

Needle Type

Stitch Pattern

Max. Speed

Max. Bight

Max. Stitch Length
475A-2285/140L

DPx5 #11 - #13

Factory-set #11

3,200 s.p.m. 8 mm 6.5 mm
475A-2285/140M

DPx5 #14 - #22

Factory-set #14

2,500 s.p.m. 8 mm 6.5 mm

-

   2.  PARTS :

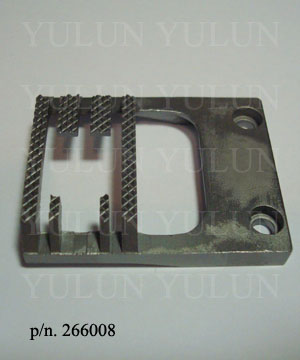

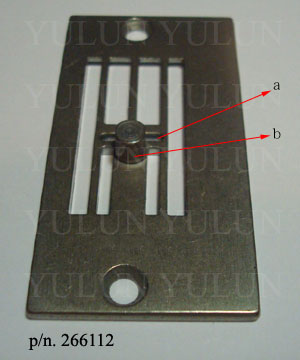

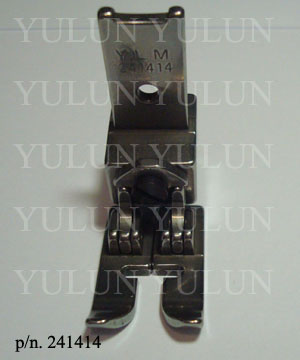

  (1) p/n. 241414 (2) p/n. 266112 (266132) (3) p/n. 266008   (4)  Stitch Pattern

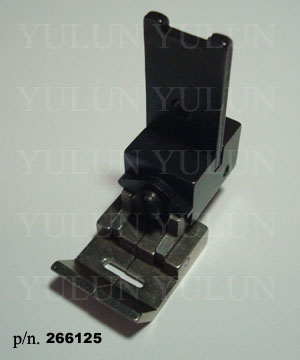

(5) p/n. 266125

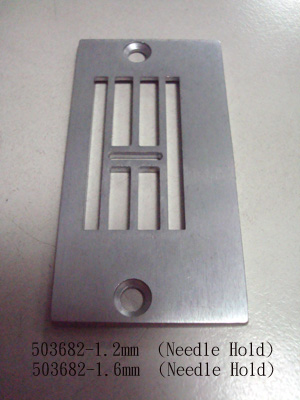

(6) p/n. 503682

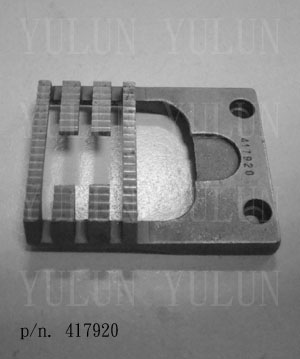

 (7) p/n. 417920 (8) Stitch Pattern
　

-

 a b
266112 S. B.
266132 B. S.

　S. Smaller   B. Gigger

 　 　

　

    3.  FEATURES :

1.

 Underwear, corsets, medical & sports wear, waistband...etc.

2.

 Faggoting, 3-step zigzag & scallop, max. pattern width 8 mm. for joining the materials of corsets.

3.

 Speed depends on the materials and the type of operation.

4.

 The sewing machine of faggoting can not adjust the reverse feeding stitch due to its design specially.

-

    4.  SEWING EXAMPLE for 475A-2285/140L (Light Materials) :

  (A1)  475A-2285/140L with CAM 411195   (A2)  475A-2285/140L with CAM 411195
   (A3)  475A-2285/140L with CAM 411195    (A4)  475A-2285/140L with CAM 411195

　-

    5.  SEWING EXAMPLE for 475A-2285/140M (Medium Materials) :

   (B1)  475A-2285/140M with CAM 411195

   (B2)  475A-2285/140M with CAM 411195

-

  6. Sewing Examples

---

　

-

    6.  VIDEO FOR OPERATION INSTRUCTIONS : (425x349)

(Video 1)

This video is to explain 3-step zigzag of 475A-2285/140M machines.

(Video 2)

This video is to explain the parts of the presser foot, throat plate, feed dog.

(Video 3) THREADING THE MACHINE

How to make threading the machine?

(Video 4)  BOBBIN WINDER

How to make the bobbin winder?
　

　
