27.   475A-143N-L

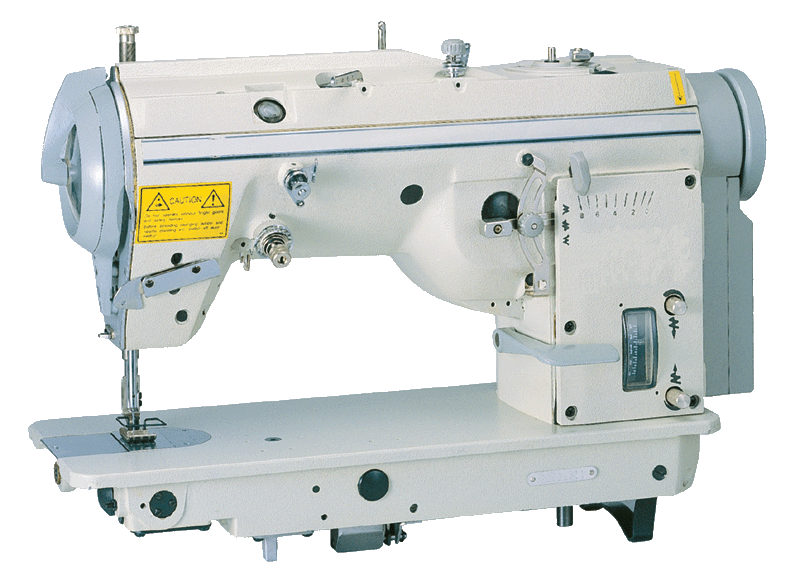

Flat Bed, Zigzag Industrial Sewing Machine

High Speed, Single Needle, Drop Feed, Lock Stitch

CHANGE CAMS and OPTIONAL CAMS of ZIGZAG SEWING MACHINE

Model :  475A-143N-L

Model : 475A-143N-M

BACK SIDE

FRONT SIDE

-

  1. SPECIFICATIONS :

MODEL

STITCH

PATTERN

MAX.

BIGHT

MAX.

STITCH

LENGTH

MAX.

SPEED

(S.P.M.)

 Needle APPLICATIONS

475A-143N-L



optional cams

(on click)

 8.0 mm 1.3 mm 4,200 (DPx5) # 11

It can be used for sewing modern, trendy form-fitting underwear and shirts for women.

(In matching with stitch requirements, various pattern cams are available for replacement.)

L : Light Materials

475A-143N-M

optional cams

(on click)

8.0 mm 1.3 mm 4,200 (DPx5) #14

For felling and joining collar on men's jacket, decorative sewing & fasten articles.

M : Medium Materials

Remarks: Speed depends on the materials and the type of operation.

 -

  2. APPLICATIONS :

  1. Attaching laces, making shoulder straps, and general zigzag works.

  2. Attaching elastic trim or lace to leg or waist sections of ladies' body suits, swim suits.

  3. Attaching elastic trim or lace to corsets, bras, etc. Also can work for decorative sewing.

  4. Decorative sewing for ladies' body suits, negligee, etc.

  5. For felling and joining collar on men's jacket, decorative sewing & fasten articles.

　

  3. FEATURES:

  1. With the improved needle position shifting lever, fine adjustment of needle location is simplified. Moreover. needle position can be fixed firmly by means of a stopper provided on the lever.

  2. New type rotary take-up ensures uniform thread tensions at low tension settings.

  3. Off-center axis hook has been adopted reducing skip stitching and thread breakage considerably.

  4. Hemmer & folder are optional.

  5. Fully improved built-in type bobbin winder makes it easier to adjust the amount of thread to be wound in bobbin and thread tension when winding bobbin.

  6. Elastic feeding device for zigzag sewing machine, special for sewing high quality ladies' & gentlemen's underwear. ( optional )

  7. Screw pump type fully automatic lubrication system ensures stable flow of oil to the hook under pressure at all speeds.

  8. The new presser bar pressure regulating knob enables the simple adjustment of presser bar pressure.

-

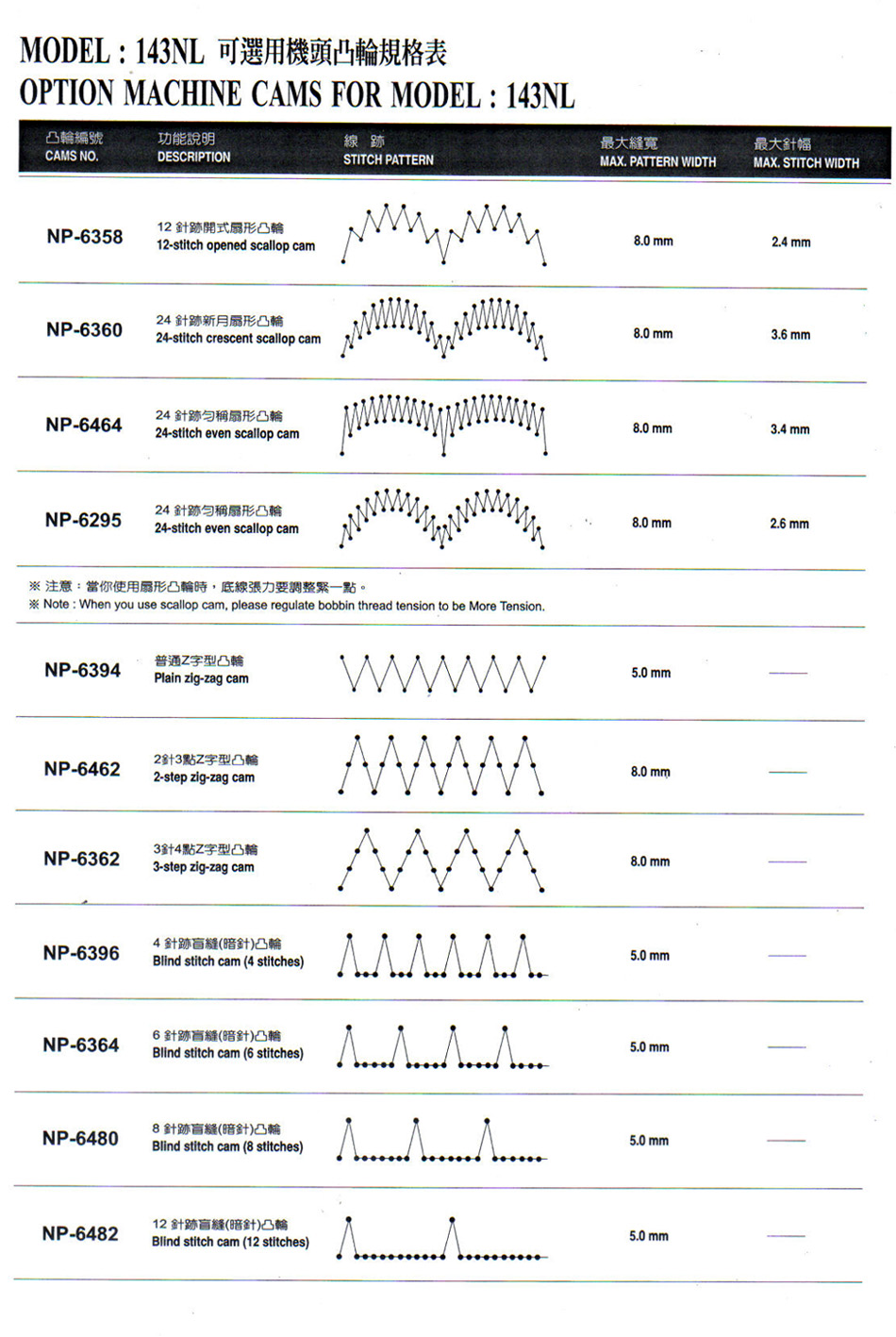

  4. STITCH PATTERN SEWING SAMPLES :

No

CAMS NO.

DESCRIPTION

STITCH PATTERN

Standard Stitch

MAX.

PATTERN WIDTH

MAX.

STITCH WIDTH
1 NP-6358 12-stitch opened scallop cam

8.0 mm 2.4 mm
2 NP-6360 24-stitch crescent scallop cam

8.0 mm 3.6 mm
3 NP-6464 24-stitch even scallop cam

8.0 mm 3.4 mm
4 NP-6295 24-stitch even scallop cam

8.0 mm 2.6 mm
　

Note: When you use scallop cam, please regulate bobbin thread tension to be More Tension.
5 NP-6394 1-step 2-point zigzag cam 8.0 mm -
6 NP-6462 2-step 3-point zigzag cam 8.0 mm -
7 NP-6362 3-step 4-point zigzag cam 5.0 mm -
8 NP-6396 Blind stitch cam (4 stitches) 5.0 mm -
9 NP-6364 Blind stitch cam (6 stitches) 5.0 mm -
10 NP-6480 Blind stitch cam (8 stitches) 5.0 mm -
11 NP-6482 Blind stitch cam (12 stitches) 5.0 mm -

-

  5. CAM LIST

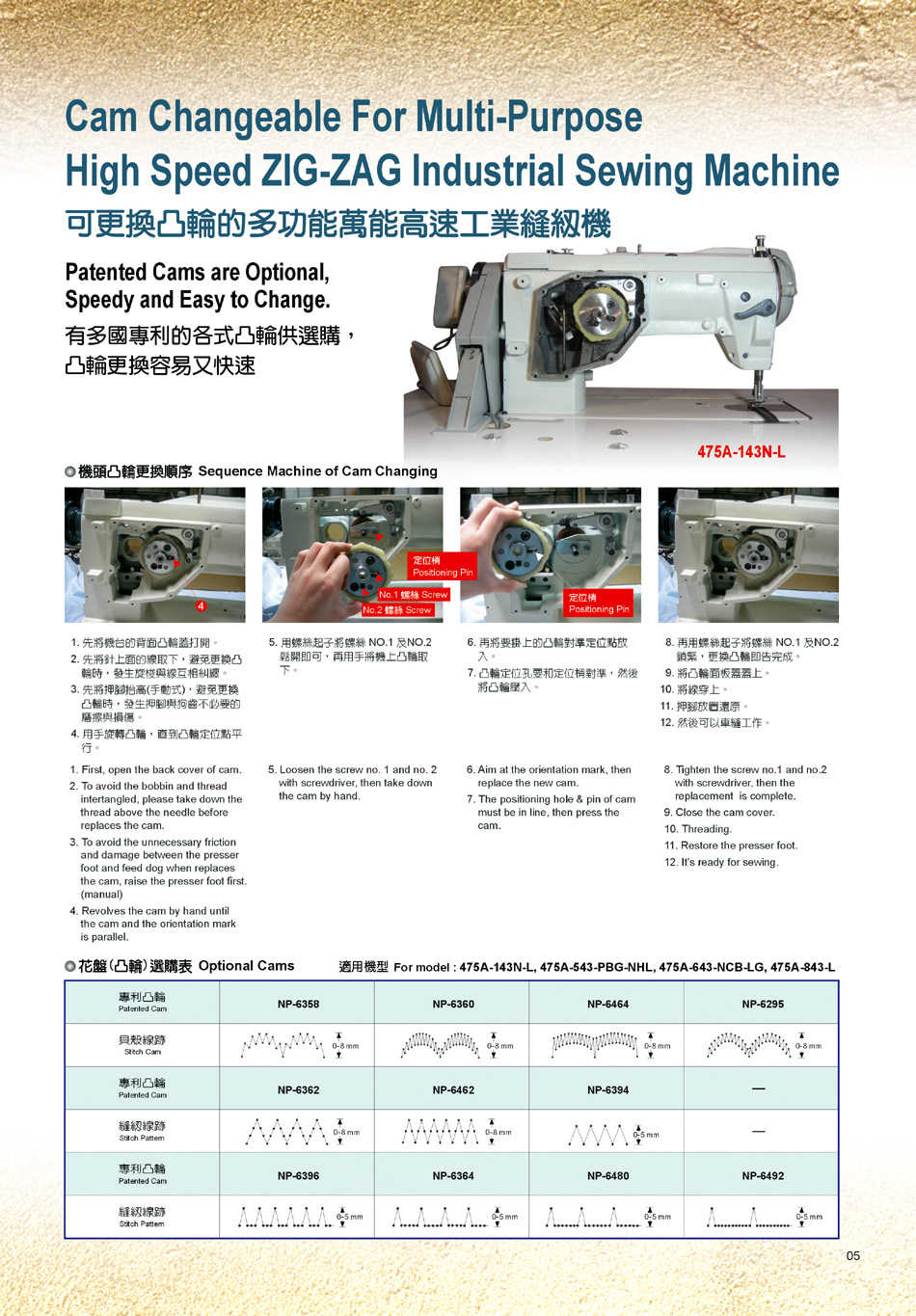

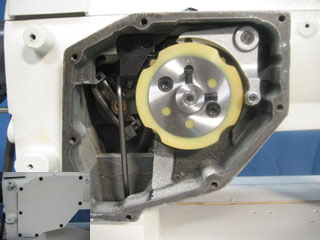

  6. CAM TO CHANGE :

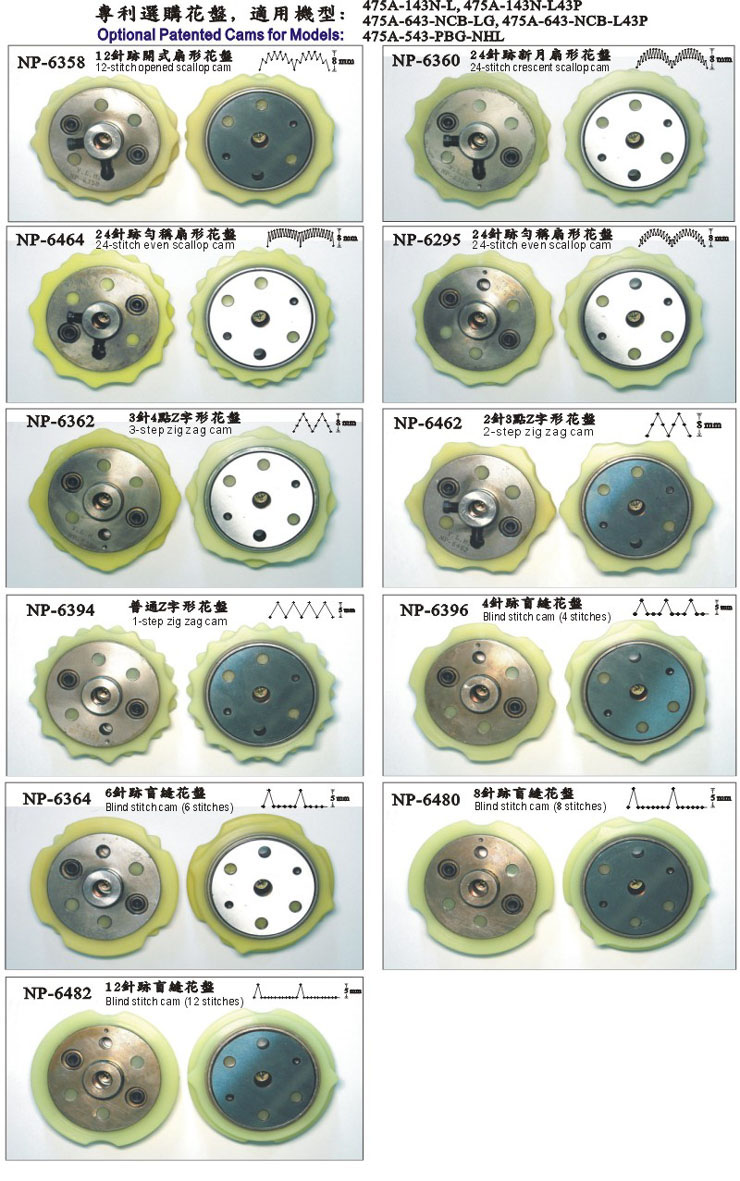

  7.  CAM PHOTOS
