32.  3680 Series

¡@

Cylinder Bed, 1-Needle, Lock Stitch,

Rotary Take-up,  Drop Feed,

Zigzag Industrial Sewing Machine

for Light Materials

¡@

-
Standard

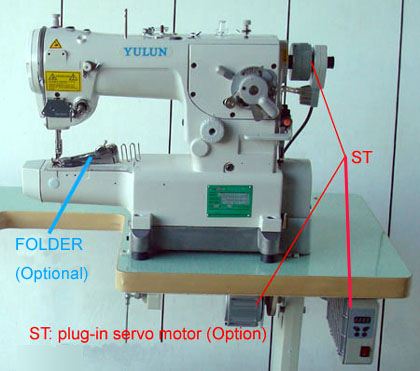

ST: plug-in servo motor (option)

FOLDER (Option)

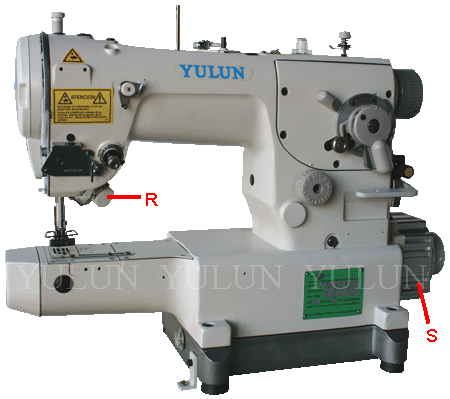

S: direct drive servo motor (Option)

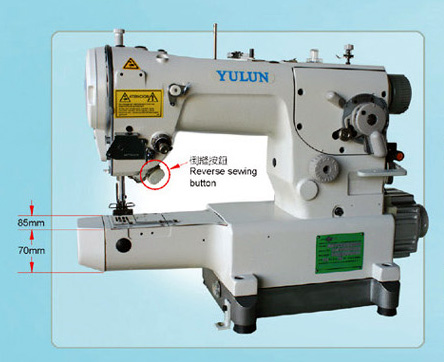

R: Reverse sewing button (Option)

475A-3680N

475A-3681N

475A-3683N

475A-3686N

475A-3684N

¡@

plain zigzag

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

plain zigzag &

3-step point zigzag

475A-3680N-ST

475A-3681N-ST

475A-3683N-ST

475A-3686N-ST

475A-3684N-ST

¡@

plain zigzag

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

plain zigzag &

3-step point zigzag

475A-3680N-S-R

475A-3681N-S-R

475A-3683N-S-R

475A-3686N-S-R

475A-3684N-S-R

¡@

plain zigzag

plain zigzag

2-step 3-point zigzag

3-step 4-point zigzag

plain zigzag &

3-step point zigzag

-

  1. SPECIFICATIONS :

Model

STITCH PATTERN

MAX. BIGHT

CIRCUMFERENCE

NEEDLE TYPE

MAX. SPEED

(S.P.M.)
475A-3680N

plain zigzag

 5 mm - DPx5 #9 - #14 4000
475A-3681N

plain zigzag

 8 mm - DPx5 #9 - #14 4000
475A-3683N

2-step 3-point zigzag

 8 mm - DPx5 #9 - #14 4000
475A-3686N

3-step 4-point zigzag

 8 mm - DPx5 #9 - #14 4000
475A-3684N

plain zigzag &

3-step point zigzag

 8 mm - DPx5 #9 - #14 4000

-

  2. INFORMATION MORE :

  (1) 475A-3680N-S-R   (2) 475A-3680N-S-R

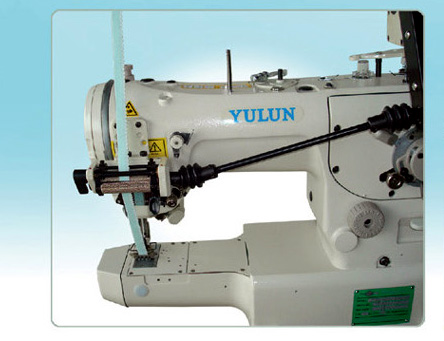

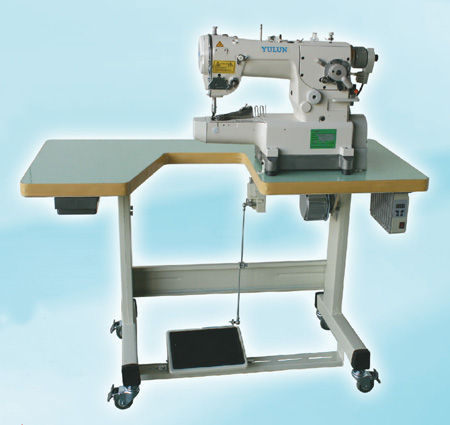

  (3) 475A-3680N-S-R   (4) 475A-3680N-ST with Folder for complete Set

-

  3. FEATURES :

  1. Beautiful appearance

  2. Low labor intensity

  3. Environmental protection and energy saving

  4. Easy to operate

  5. Intelligent design and high efficiency

  6. Small vibration, longer service life

  7. Upgrade production quality and make better working conditions

  8. Easy to install and maintain

  -

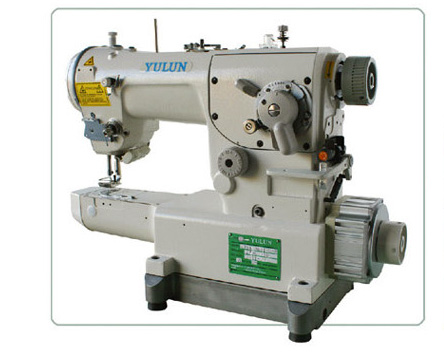

4.  INTRODUCTION OF DIRECT DRIVE SERVO MOTOR :

Series of fixed needle energy-saving servo direct drive motors and control devices not only satisfy the needs of the work of the sewing machines with strong output power, but also adjust the work status of the direct drive motors through all kinds of reliable automatic control and decrease energy consumption. They have the characteristics of quick start, accurate position braking, easy installation and simple maintenance. They are the most ideal upgrading products for the current traditional industrial sewing machines to replace clutch motors and outboard.

¡@

¡@

Cylinder Bed, 1-Needle, Lock Stitch,

Rotary Take-up,  Drop Feed,

Zigzag Industrial Sewing Machine

for Light Materials

32.  3680 Series

¡@

¡@

¡@

¡@
