22.    905M Series

¡@

Post Bed, 1-Needle  Lock Stitch

Upper & Lower Feed,  Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

¡@

Fig. 1

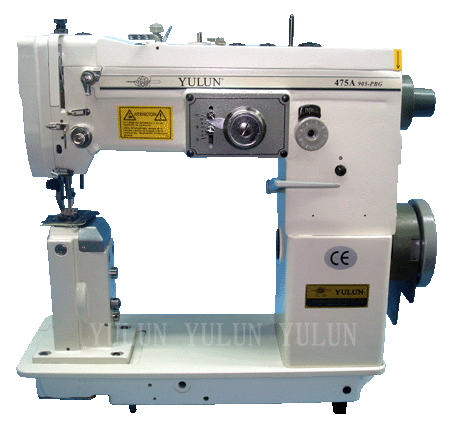

Fig. 2

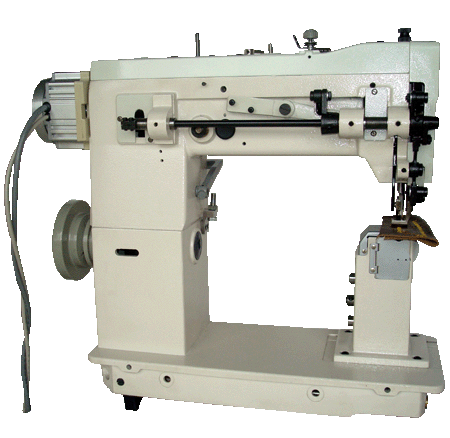

Fig. 3
¡¶  Upper & Lower Feed
475A-905-M   plain zigzag
475A-925-M ¡@ 2-step 3-point zigzag
475A-935-M ¡@ 3-step 4-point zigzag
475A-905-M-S ¡@ plain zigzag
475A-925-M-S ¡@ 2-step 3-point zigzag
475A-935-M-S ¡@ 3-step 4-point zigzag

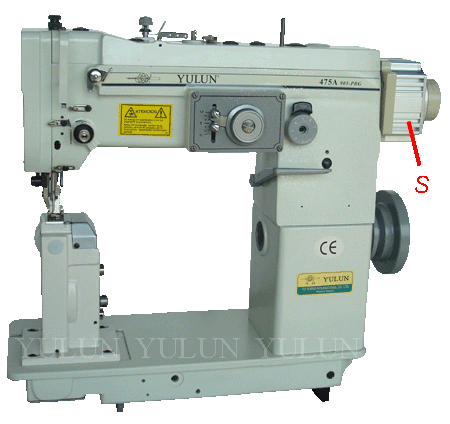

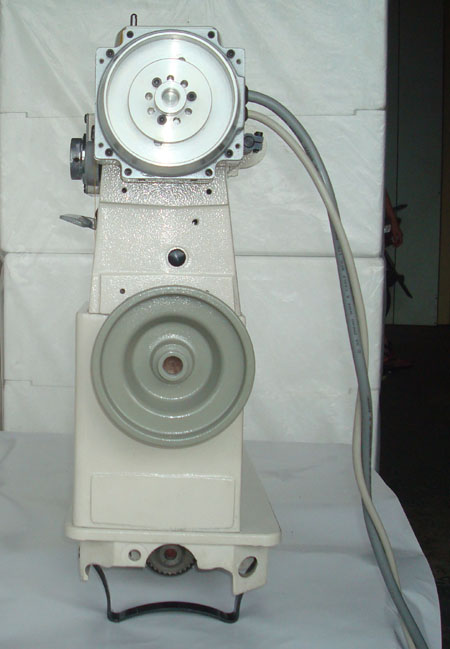

S: Direct drive server motor
-

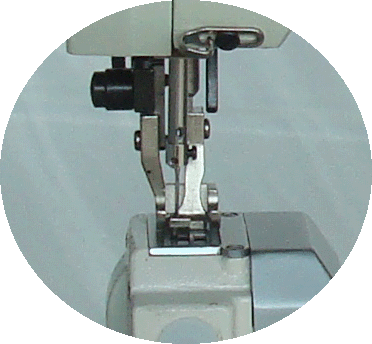

Fig. 4

Fig. 5

-

  1.  SPECIFICATIONS :

MODEL

STITCH

PATTERN

MAX.

BIGHT

 Needle Type

Presser Foot

Clearance

(KNEE/HAND)

MAX.

SPEED

(s.p.m.)
475A-905-M

Plain zigzag

10.0 mm

(15/32")

 DPX17  #14- #22 10 mm 2000 s.p.m.
475A-925-M

2-step 3-point zigzag

12.0 mm

(26/64")

 DPX17  #14- #22 10 mm 2000 s.p.m.
475A-935-M

3-step 4-point zigzag

12.0 mm

(26/64")

 DPX17  #14- #22 10 mm 2000 s.p.m.

-

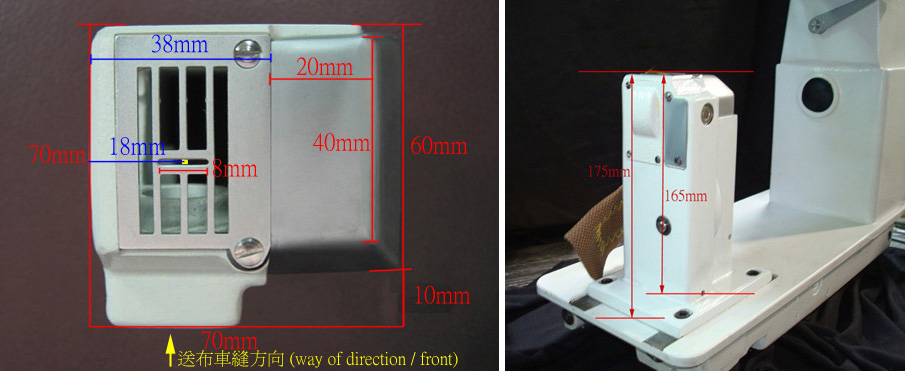

  2. POST SIZE AS BELOW

-

  3. APPLICATIONS :

For Sewing Medium To Thick Fabrics, Bags, Attaché cases, Shoes, Sports Shoes, Caps, Gloves, Canvas, Tent, Garments, Jeans, Golf Gloves, Diving Suits, Sports Goods, Sofa leather & Cylindrical Products.

  4. FEATURES :

1.

Graduated Dial for feed adjustment.

Feed amount is adjustable easily by setting a suitable number on the graduated dial.
2.

Large Hook.

By adoption of large hook, the winding volume of lower thread is increased and due to this feature, the frequency of lower thread replacement is minimized. Consequently, sewing efficiency is a remarkable heightened.
3.

Convenient reverse feed lever.

Reverse feed can be performed by finger soft touch of press-down lever with spring return.
4.

Automatic lubrication system.

The lubrication to sewing hook components is made automatically from the oil-reservoir and ensures high sewing efficiency in the long work.
5.

Particularly well suited for sewing problem materials.

Especially such having slippery or tacky surfaces, elastic materials, and for joining multiple plies without inter-ply shifting.
6. Suitable for sewing concave, convex, spheroidal, tubular, bowl-like objects.
7. Suitable for sewing small pieces, odd and small curved uneven shapes, with strong climbing capability and even stitch.
8. When sewing multi-layer leather fabrics, the inner layer will not move.
9. Clearly arranged thread guide.

-

  5.  SEWING EXAMPLE & VIDEO :

(1) (2)
- -

-

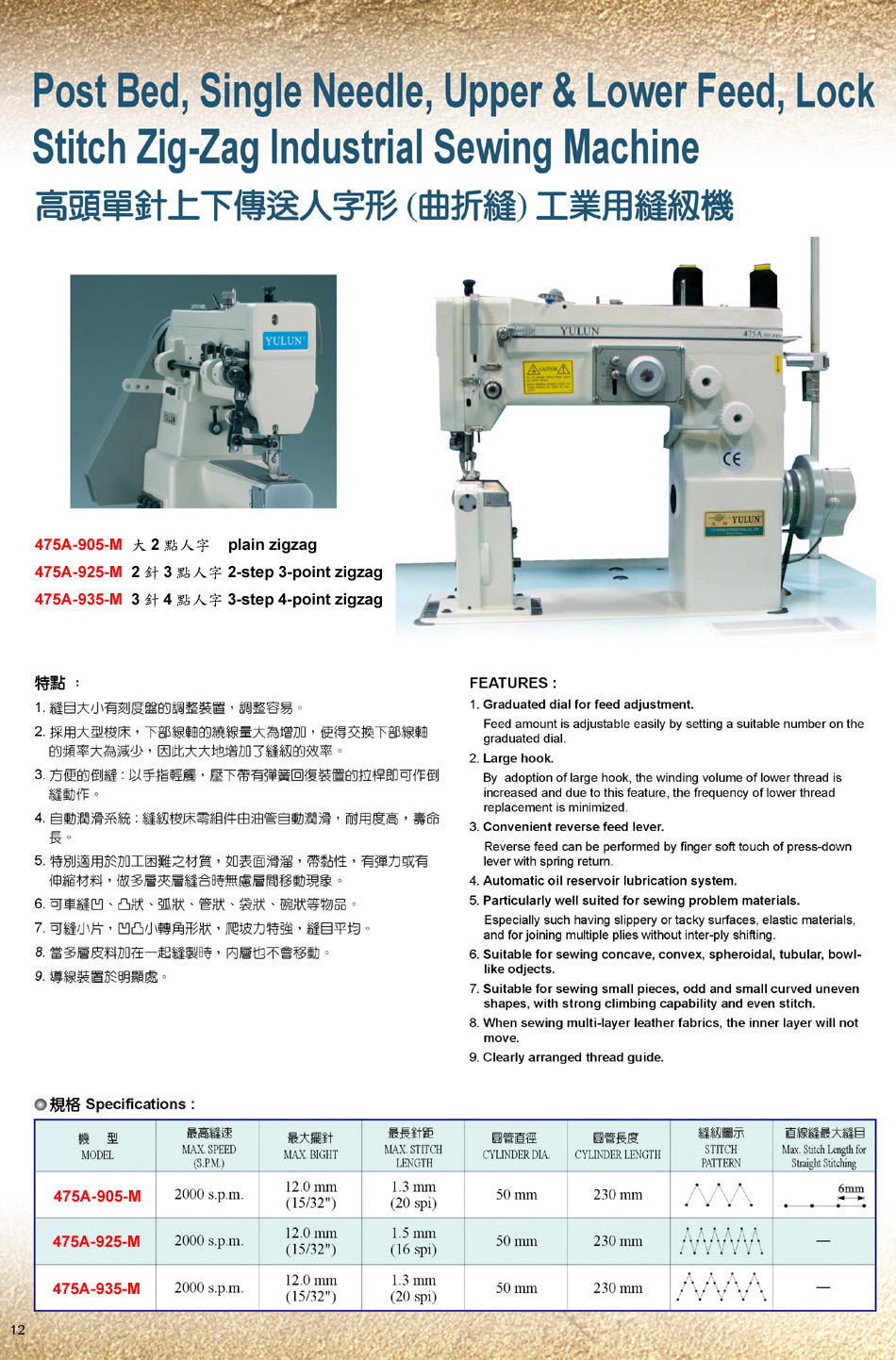

  6.  CATALOGUES :

¡@

¡@

Post Bed, 1-Needle  Lock Stitch

Upper & Lower Feed,  Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

¡@

22.    905M Series

¡@

¡@

¡@

¡@
