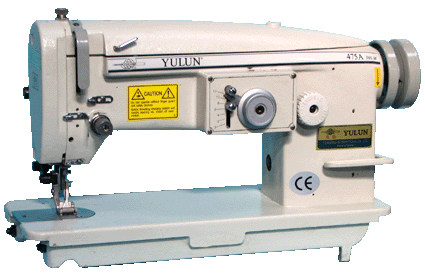

12.    305M Series

¡@

Flat Bed, 1-Needle, Lock Stitch,

Upper & Lower Feed,  Heavy-Duty Materials

Zigzag Industrial Sewing Machine (Large Hook)

¡@

475A-305-M

475A-325-M

475A-335-M

 ¡@

plain zigzag ( 10 mm)

2-step 3-point zigzag ( 12 mm )

3-step 4-point zigzag ( 12 mm )

Upper & Lower Feed

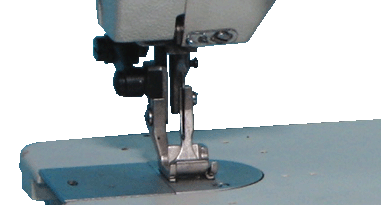

Front Side

-

  1. SPECIFICATIONS :

MODEL

STITCH

PATTERN

MAX.

BIGHT

MAX.

STITCH

LENGTH

MAX.

SPEED

(s.p.m.)

 Needle

Type

Presser Foot Clearance (knee/hand)
475A-305-M

Plain zigzag

10.0 mm

(15/32")

1.3 mm

(20 spi)

 2000 s.p.m. DPX17  #14-#24 10 mm
475A-325-M

2-step 3-point zigzag

12.0 mm

(26/64")

1.5 mm

(16 spi)

 2000 s.p.m. DPX17  #14-#24 10 mm
475A-335-M

3-step 4-point zigzag

12.0 mm

(26/64")

1.3 mm

(20 spi)

 2000 s.p.m. DPX 17  #14-#24 10 mm

-

  2. FEATURES:

  1. Graduted dial for feed adjustment.

    Feed amount is adjustable easily by setting a suitable number on the graduated dial.

  2. Large hook.

    By adoption of large hook, the winding volume of lower thread is increased and due to this feature, the frequency of lower thread replacement is minimized.

  3. Convenient reverse feed lever.

    Reverse feed can be performed by finger soft touch of press-down lever with spring return.

  4. Particularly well suited for sewing problem materials.

    Especially such having slippery or tacky surfaces, elastic materials.

  5. When sewing smulti-layer leather materials, the inner layer will not move, with strong climbing capability and even stitch.

  6. Presser foot clearance (knee/hand):10mm,

    Needle type : DPX17 #14-#24

-

  3. APPLICATIONS:

For sewing medium to thick weight materials, leather cloth, travel bags, shoes, sports goods, jeans, stretchable materials, leather goods & joining multi-layer pieces (seamless sewing).

¡@

  4. SEWING SAMPLE & VIDEO :

¡¿  (1) 475A-305-M   plain zigzag ¡¿  (2) 475A-325-M    2-step 3-point zigzag

¡¿  (3) 475A-305-M   plain zigzag

 (2) 475A-305-M for plain zigzag (video)

¡@
